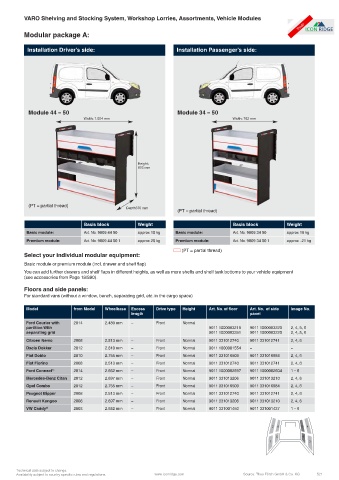

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Modular package A:

Installation Driver’s side: Installation Passenger’s side:

Module 44 – 50 Module 34 – 50
Width: 1.004 mm Width: 762 mm

Height:
876 mm

(PT = partial thread)
Depth370 mm
(PT = partial thread)
Basis block Weight Basis block Weight
Basic module: Art. No. 9009 44 50 approx 18 kg Basic module: Art. No. 9009 34 50 approx 16 kg
Premium module: Art. No. 9009 44 50 1 approx 25 kg Premium module: Art. No. 9009 34 50 1 approx . 21 kg
(PT = partial thread)
Select your individual modular equipment:
Basic module or premium module (incl. drawer and shelf flap)
You can add further drawers and shelf flaps in different heights, as well as more shelfs and shelf tank bottoms to your vehicle equipment
(see accessories from Page 18/890).

Floors and side panels:
For standard vans (without a window, bench, separating grid, etc. in the cargo space)

Model from Model Wheelbase Excess Drive type Height Art. No. of floor Art. No. of side Image No.
length panel
Ford Courier with 2014 2.489 mm – Front Normal
partition With 9011 1000003219 9011 1000003220 2, 4, 5, 6
separating grid 9011 1000003391 9011 1000003220 2, 4, 5, 6
Citroen Nemo 2008 2.513 mm – Front Normal 9011 331012740 9011 331012741 2, 4, 6
Dacia Dokker 2012 2.810 mm – Front Normal 9011 1000001554 – –
Fiat Doblo 2010 2.755 mm – Front Normal 9011 331016509 9011 331016984 2, 4, 6
Fiat Fiorino 2008 2.513 mm – Front Normal 9011 331012740 9011 331012741 2, 4, 6
Ford Connect 1) 2014 2.662 mm – Front Normal 9011 1000002597 9011 1000002604 1 – 6
Mercedes-Benz Citan 2012 2.697 mm – Front Normal 9011 331013206 9011 331013210 2, 4, 6
Opel Combo 2012 2.755 mm – Front Normal 9011 331016509 9011 331016984 2, 4, 6
Peugeot Bipper 2008 2.513 mm – Front Normal 9011 331012740 9011 331012741 2, 4, 6
Renault Kangoo 2008 2.697 mm – Front Normal 9011 331013206 9011 331013210 2, 4, 6
VW Caddy 2) 2003 2.682 mm – Front Normal 9011 331001450 9011 331001437 1 – 6

2 6 10 4
5 9
1 3

Technical data subject to change.
