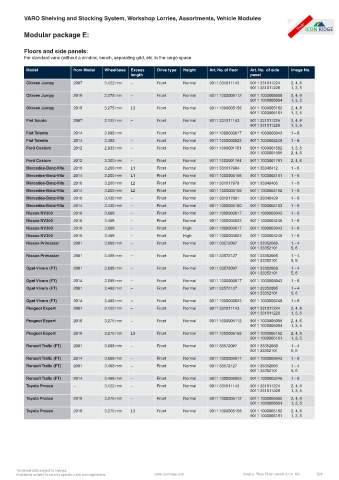

Page 528 - Icon Ridge Electric Trade Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Modular package E:

Floors and side panels:
For standard vans (without a window, bench, separating grid, etc. in the cargo space

Model from Model Wheelbase Excess Drive type Height Art. No. of floor Art. No. of side Image No.
length panel
Citroen Jumpy 2007 3.122 mm – Front Normal 9011 331011143 9011 331011224 2, 4, 6
9011 331011226 1, 3, 5
Citroen Jumpy 2016 3.275 mm – Front Normal 9011 1000005112 9011 1000005095 2, 4, 6
9011 1000005094 1, 3, 5
Citroen Jumpy 2016 3.275 mm L3 Front Normal 9011 1000005158 9011 1000005162 2, 4, 6
9011 1000005161 1, 3, 5
Fiat Scudo 2007 3.122 mm – Front Normal 9011 331011143 9011 331011224 2, 4, 6
9011 331011226 1, 3, 5
Fiat Talento 2014 3.098 mm Front Normal 9011 1000003017 9011 1000003043 1 – 6
Fiat Talento 2014 3.498 – Front Normal 9011 1000003023 9011 1000003249 1 – 6
Ford Custom 2012 2.933 mm – Front Normal 9011 1000001761 9011 1000001582 1, 3, 5
9011 1000001585 2, 4, 6
Ford Custom 2012 3.300 mm – Front Normal 9011 1000001764 9011 1000001791 2, 4, 6
Mercedes-Benz-Vito 2010 3.200 mm L1 Front Normal 9011 331017984 9011 33340412 1 – 6
Mercedes-Benz-Vito 2014 3.200 mm L1 Front Normal 9011 1000003158 9011 1000003161 1 – 6
Mercedes-Benz-Vito 2010 3.200 mm L2 Front Normal 9011 331017978 9011 33340405 1 – 6
Mercedes-Benz-Vito 2014 3.200 mm L2 Front Normal 9011 1000003159 9011 1000003162 1 – 6
Mercedes-Benz-Vito 2010 3.430 mm – Front Normal 9011 331017981 9011 33340429 1 – 6
Mercedes-Benz-Vito 2014 3.430 mm – Front Normal 9011 1000003160 9011 1000003163 1 – 6
Nissan NV300 2016 3.098 – Front Normal 9011 1000003017 9011 1000003043 1 – 6
Nissan NV300 2016 3.498 – Front Normal 9011 1000003023 9011 1000003249 1 – 6
Nissan NV300 2016 3.098 – Front High 9011 1000003017 9011 1000003043 1 – 6
Nissan NV300 2016 3.498 – Front High 9011 1000003023 9011 1000003249 1 – 6
Nissan Primastar 2001 3.098 mm – Front Normal 9011 33572097 9011 33352088 1 – 4
9011 33352101 5, 6
Nissan Primastar 2001 3.498 mm – Front Normal 9011 33572127 9011 33352095 1 – 4
9011 33352101 5, 6
Opel Vivaro (FT) 2001 3.098 mm – Front Normal 9011 33572097 9011 33352088 1 – 4
9011 33352101 5, 6
Opel Vivaro (FT) 2014 3.098 mm – Front Normal 9011 1000003017 9011 1000003043 1 – 6
Opel Vivaro (FT) 2001 3.498 mm – Front Normal 9011 33572127 9011 33352095 1 – 4
9011 33352101 5, 6
Opel Vivaro (FT) 2014 3.498 mm – Front Normal 9011 1000003023 9011 1000003249 1 – 6
Peugeot Expert 2007 3.122 mm – Front Normal 9011 331011143 9011 331011224 2, 4, 6
9011 331011226 1, 3, 5
Peugeot Expert 2016 3.275 mm – Front Normal 9011 1000005112 9011 1000005095 2, 4, 6
9011 1000005094 1, 3, 5
Peugeot Expert 2016 3.275 mm L3 Front Normal 9011 1000005158 9011 1000005162 2, 4, 6
9011 1000005161 1, 3, 5
Renault Trafic (FT) 2001 3.098 mm – Front Normal 9011 33572097 9011 33352088 1 – 4
9011 33352101 5, 6
Renault Trafic (FT) 2014 3.098 mm – Front Normal 9011 1000003017 9011 1000003043 1 – 6
Renault Trafic (FT) 2001 3.498 mm – Front Normal 9011 33572127 9011 33352095 1 – 4
9011 33352101 5, 6
Renault Trafic (FT) 2014 3.498 mm – Front Normal 9011 1000003023 9011 1000003249 1 – 6
Toyota Proace – 3.122 mm – Front Normal 9011 331011143 9011 331011224 2, 4, 6
9011 331011226 1, 3, 5
Toyota Proace 2016 3.275 mm – Front Normal 9011 1000005112 9011 1000005095 2, 4, 6
9011 1000005094 1, 3, 5
Toyota Proace 2016 3.275 mm L3 Front Normal 9011 1000005158 9011 1000005162 2, 4, 6
9011 1000005161 1, 3, 5

Technical data subject to change.
