Building Services

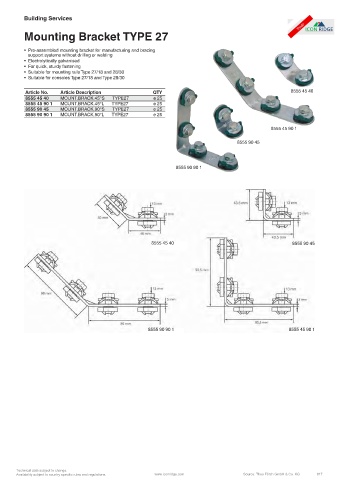

Mounting Bracket TYPE 27

• Pre-assembled mounting bracket for manufacturing and bracing
support systems without drilling or welding
• Electrolytically galvanised
• For quick, sturdy fastening
• Suitable for mounting rails Type 27/18 and 28/30
• Suitable for consoles Type 27/18 and Type 28/30

Article No. Article Description QTY 8555 45 40
8555 45 40 MOUNT.BRACK.45°S TYPE27 e 25
8555 45 90 1 MOUNT.BRACK.45°L TYPE27 e 25
8555 90 45 MOUNT.BRACK.90°S TYPE27 e 25
8555 90 90 1 MOUNT.BRACK.90°L TYPE27 e 25

8555 45 90 1

8555 90 45

8555 90 90 1

8555 45 40 8555 90 45

8555 90 90 1 8555 45 90 1

Technical data subject to change.
