P. 820

Building Services

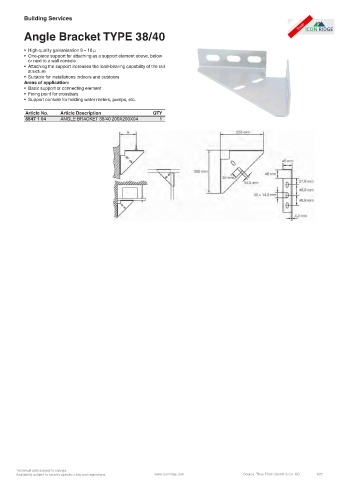

         Angle Bracket TYPE 38/40


         • High quality galvanisation 8 – 10 µ
         • One-piece support for attaching as a support element above, below
           or next to a wall console
         • Attaching the support increases the load-bearing capability of the rail
           structure
         • Suitable for installations indoors and outdoors
         Areas of application:
         • Basic support or connecting element
         • Fixing point for crossbars
         • Support console for holding water meters, pumps, etc.
          Article No.  Article Description             QTY
          8547 1 04   ANGLE BRACKET 38/40 200X200X04     1











































































       Technical data subject to change.
