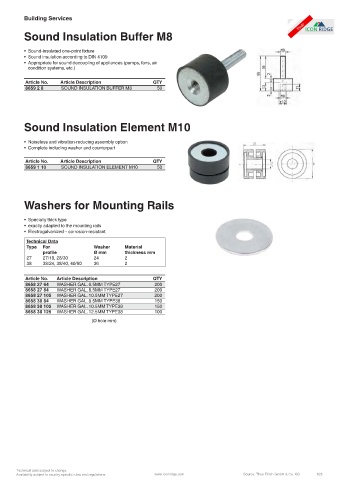

Page 823 - Icon Ridge Electric Trade Catalog

Building Services

Sound Insulation Buffer M8

• Sound-insulated one-point fixture
• Sound insulation according to DIN 4109
• Appropriate for sound decoupling of appliances (pumps, fans, air
condition systems, etc.)

Article No. Article Description QTY
8659 2 8 SOUND INSULATION BUFFER M8 50

Sound Insulation Element M10

• Noiseless and vibration-reducing assembly option
• Complete including washer and counterpart

Article No. Article Description QTY
8659 1 10 SOUND INSULATION ELEMENT M10 50

Washers for Mounting Rails

• Specially thick type
• exactly adapted to the mounting rails
• Electrogalvanized – corrosion-resistant
Technical Data
Type For Washer Material
profile Ø mm thickness mm
27 27/18, 28/30 24 2
38 38/24, 38/40, 40/60 36 2

Article No. Article Description QTY
8658 27 64 WASHER GAL. 6.5MM TYPE27 200
8658 27 84 WASHER GAL. 8.5MM TYPE27 200
8658 27 105 WASHER GAL. 10.5MM TYPE27 200
8658 38 84 WASHER GAL. 8.5MM TYPE38 150
8658 38 105 WASHER GAL. 10.5MM TYPE38 150
8658 38 125 WASHER GAL. 12.5MM TYPE38 100
(Ø hole mm)

Technical data subject to change.
