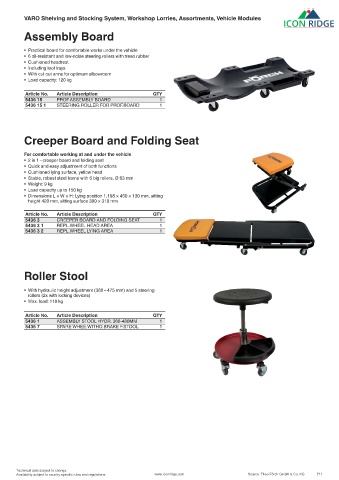

Page 711 - Icon Ridge Maintenance & Service Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Assembly Board

• Practical board for comfortable works under the vehicle
• 6 oil-resistant and low-noise steering rollers with tread rubber
• Cushioned headrest
• Including tool trays
• With cut out arms for optimum elbowroom
• Load capacity: 120 kg

Article No. Article Description QTY
5436 15 PROF.ASSEMBLY BOARD 1
5436 15 1 STEERING ROLLER FOR PROF.BOARD 1

Creeper Board and Folding Seat

For comfortable working at and under the vehicle
• 2 in 1 – creeper board and folding seat
• Quick and easy adjustment of both functions
• Cushioned lying surface, yellow head
• Stable, robust steel frame with 6 big rollers, Ø 63 mm
• Weight: 9 kg
• Load capacity up to 150 kg
• Dimensions L × W × H: Lying position 1,198 × 450 × 130 mm, sitting
height 420 mm, sitting surface 300 × 310 mm

Article No. Article Description QTY
5436 3 CREEPER BOARD AND FOLDING SEAT 1
5436 3 1 REPL.WHEEL HEAD AREA 1
5436 3 2 REPL.WHEEL LYING AREA 1

Roller Stool

• With hydraulic height adjustment (360 – 475 mm) and 5 steering
rollers (2x with locking devices)
• Max. load: 110 kg

Article No. Article Description QTY
5436 1 ASSEMBLY STOOL HYDR. 360-480MM 1
5436 7 SPARE WHEE.WITHO.BRAKE F.STOOL 1

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 711
