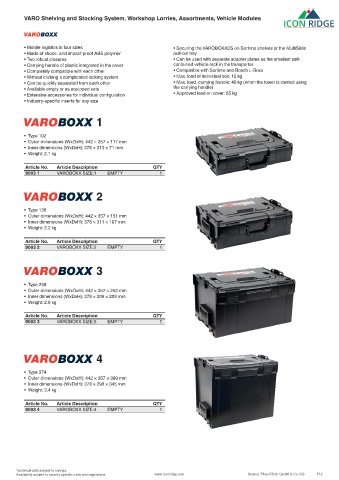

Page 712 - Icon Ridge Maintenance & Service Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

• Mobile logistics in four sizes • Securing the VAROBOXXES on Sortimo shelves or the MultiSlide
• Made of shock- and impact-proof ABS polymer pull-out tray
• Two robust closures • Can be used with separate adapter plates as the smallest self-
• Carrying handle of plastic integrated in the cover contained vehicle rack in the transporter
• Completely compatible with each other • Compatible with Sortimo and Bosch L-Boxx
• Without clicking a complicated locking system • Max. load of individual box: 12 kg
• Can be quickly separated from each other • Max. load, carrying handle: 40 kg (when the tower is carried using
• Available empty or as equipped sets the carrying handle)
• Approved load on cover: 85 kg
• Extensive accessories for individual configuration
• Industry-specific inserts for any size

1

• Type 102
• Outer dimensions (WxDxH): 442 × 357 × 117 mm
• Inner dimensions (WxDxH): 378 × 313 × 71 mm
• Weight: 2.1 kg

Article No. Article Description QTY
9003 1 VAROBOXX SIZE:1 EMPTY 1

2

• Type 136
• Outer dimensions (WxDxH): 442 × 357 × 151 mm
• Inner dimensions (WxDxH): 378 × 311 × 107 mm
• Weight: 2.2 kg
Article No. Article Description QTY
9003 2 VAROBOXX SIZE:2 EMPTY 1

3

• Type 238
• Outer dimensions (WxDxH): 442 × 357 × 252 mm
• Inner dimensions (WxDxH): 378 × 306 × 209 mm
• Weight: 2.8 kg

Article No. Article Description QTY
9003 3 VAROBOXX SIZE:3 EMPTY 1

4

• Type 374
• Outer dimensions (WxDxH): 442 × 357 × 389 mm
• Inner dimensions (WxDxH): 378 × 296 × 345 mm
• Weight: 3.4 kg

Article No. Article Description QTY
9003 4 VAROBOXX SIZE:4 EMPTY 1

Technical data subject to change.
