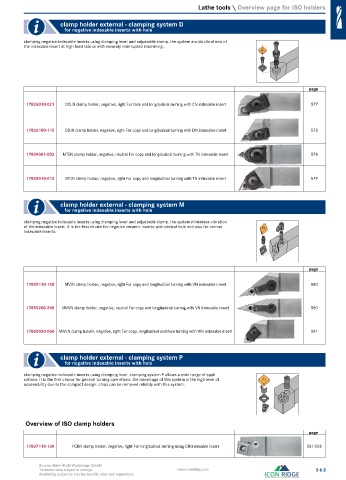

P. 563
Lathe tools \ Overview page for ISO holders
clamp holder external - clamping system D
for negative indexable inserts with hole
clamping negative indexable inserts using clamping lever and adjustable clamp. the system avoids vibrations of
the indexable insert at high feed rate or with severely interrupted machining.
page
17826010-021 DCLN clamp holder, negative, right For face and longitudinal turning with CN indexable insert 577
17826100-115 DDJN clamp holder, negative, right For copy and longitudinal turning with DN indexable insert 578
17859001-002 MTEN clamp holder, negative, neutral For copy and longitudinal turning with TN indexable insert 578
17859010-015 MTJN clamp holder, negative, right For copy and longitudinal turning with TN indexable insert 579
clamp holder external - clamping system M
for negative indexable inserts with hole
clamping negative indexable inserts using clamping lever and adjustable clamp. the system minimises vibration
of the indexable insert. it is the first choice for negative ceramic inserts with central hole and also for cermet
indexable inserts.
page
17859110-120 MVJN clamp holder, negative, right For copy and longitudinal turning with VN indexable insert 580
17859200-205 MVVN clamp holder, negative, neutral For copy and longitudinal turning with VN indexable insert 580
17860020-060 MWLN clamp holder, negative, right For copy, longitudinal and face turning with WN indexable insert 581
clamp holder external - clamping system P
for negative indexable inserts with hole
clamping negative indexable inserts using clamping lever. clamping system P allows a wide range of appli-
cations. it is the first choice for general turning operations. the advantage of this system is the high level of
accessibility due to the compact design. chips can be removed reliably with this system.
Overview of ISO clamp holders
page
17837110-130 PCBN clamp holder, negative, right For longitudinal turning using CN indexable insert 581-582
