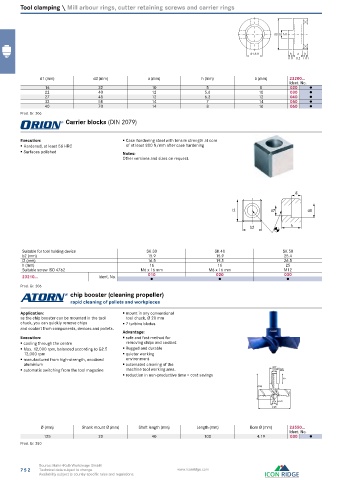

Tool clamping \ Mill arbour rings, cutter retaining screws and carrier rings

d3 b h11

d1 A11 h a h
-IT11 -0.2 -IT11

d1 (mm) d3 (mm) a (mm) h (mm) b (mm) 23200...
Ident. No.
16 32 10 5 8 020 ●
22 40 12 5.6 10 030 ●
27 48 12 6.3 12 040 ●
32 58 14 7 14 050 ●
40 70 14 8 16 060 ●
Prod. Gr. 206
Carrier blocks (DIN 2079)

Execution: ƒ Case-hardening steel with tensile strength at core
ƒ Hardened, at least 56 HRC of at least 800 N/mm after case hardening
ƒ Surfaces polished Notes:
Other versions and sizes on request.

g

l2 d7 d8

b2 h

Suitable for tool holding device SK 30 SK 40 SK 50
b2 (mm) 15.9 15.9 25.4
l2 (mm) 16.5 19.5 26.5
h (mm) 16 16 25
Suitable screw ISO 4762 M6 x 16 mm M6 x 16 mm M12
23210... Ident. No. 010 020 030
●
●
●
Prod. Gr. 206
chip booster (cleaning propeller)
rapid cleaning of pallets and workpieces
Application: ƒ mount in any conventional
as the chip booster can be mounted in the tool tool chuck, Ø 20 mm
chuck, you can quickly remove chips ƒ 7 turbine blades
and coolant from components, devices and pallets.
Advantage:
Execution: ƒ safe and fast method for
ƒ cooling through the centre removing chips and coolant
ƒ Max. 12,000 rpm, balanced according to G2.5 ƒ Rugged and durable
12,000 rpm ƒ quieter working
ƒ manufactured from high-strength, anodised environment
aluminium ƒ automated cleaning of the
ƒ automatic switching from the tool magazine machine tool working area. Ø Ø 37 20 G6 –0,007
–0,020
ƒ reduction in non-productive time = cost savings
40
(100)

Ø 4,19
Ø 24,7
Ø 125

Ø (mm) Shank mount Ø (mm) Shaft length (mm) Length (mm) Bore Ø (mm) 23550...
Ident. No.
125 20 40 100 4.19 030 ●
Prod. Gr. 280

Source: Hahn+Kolb Werkzeuge GmbH
752 Technical data subject to change. www.iconridge.com
Availability subject to country specific rules and regulations.
