Truckline

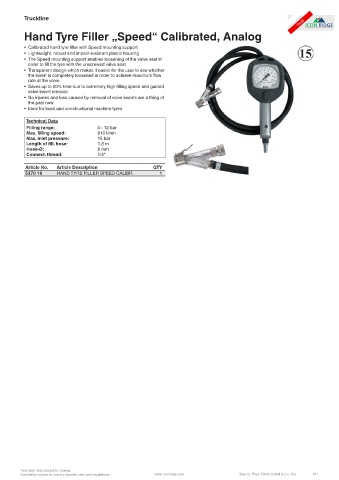

Hand Tyre Filler „Speed“ Calibrated, Analog

• Calibrated hand tyre filler with Speed mounting support
• Lightweight, robust and impact-resistant plastic housing
• The Speed mounting support enables loosening of the valve seat in
order to fill the tyre with the unscrewed valve seat
• Transparent design which makes it easier for the user to see whether
the insert is completely loosened in order to achieve maximum flow
rate at the valve
• Saves up to 50% time due to extremely high filling speed and guided
valve insert removal
• No injuries and loss caused by removal of valve inserts are a thing of
the past now
• Ideal for truck and constructional machine tyres

Technical Data
Filling range: 0 - 12 bar
Max. filling speed: 910 l/min.
Max. inlet pressure: 15 bar
Length of fill. hose: 1.8 m
Hose-Ø: 8 mm
Connect. thread: 1/4“

Article No. Article Description QTY
5370 16 HAND TYRE FILLER SPEED CALIBR. 1

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 911
