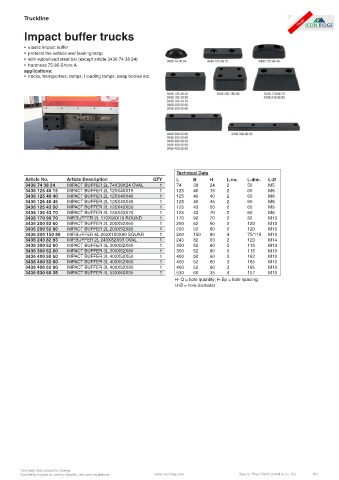

Page 912 - Icon Ridge Automotive & Truck Catalog

Truckline

Impact buffer trucks

• elastic impact buffer
• protects the vehicle and loading ramp
• with vulcanised steel bar (except article 3436 74 38 24)
• hardness 75-80 Shore A
applications:
• trucks, transporters, ramps, | loading ramps, swap bodies etc.

Technical Data
Article No. Article Description QTY L B H L-no. L-dim. L-Ø
3436 74 38 24 IMPACT BUFFER 2L 74X38X24 OVAL 1 74 38 24 2 50 M5
3436 125 40 15 IMPACT BUFFER 2L 125X40X15 1 125 40 15 2 60 M8
3436 125 40 40 IMPACT BUFFER 2L 125X40X40 1 125 40 40 2 60 M8
3436 125 40 45 IMPACT BUFFER 2L 125X40X45 1 125 40 45 2 60 M8
3436 125 43 50 IMPACT BUFFER 2L 125X43X50 1 125 43 50 2 60 M8
3436 125 43 70 IMPACT BUFFER 2L 125X43X70 1 125 43 70 2 60 M8
3436 170 90 70 IMP.BUFFER 2L 170X90X70 ROUND 1 170 90 70 2 82 M10
3436 200 52 60 IMPACT BUFFER 2L 200X52X60 1 200 52 60 2 120 M10
3436 200 52 80 IMPACT BUFFER 2L 200X52X80 1 200 52 80 2 120 M10
3436 200 150 80 IMP.BUFFER 4L 200X150X80 SQUAR 1 200 150 80 4 75/115 M10
3436 243 82 93 IMP.BUFFER 2L 243X82X93 OVAL 1 243 82 93 2 120 M14
3436 300 52 60 IMPACT BUFFER 3L 300X52X60 1 300 52 60 3 115 M10
3436 300 52 80 IMPACT BUFFER 3L 300X52X80 1 300 52 80 3 115 M10
3436 400 50 50 IMPACT BUFFER 3L 400X50X50 1 400 50 50 3 162 M10
3436 400 52 60 IMPACT BUFFER 3L 400X52X60 1 400 52 60 3 165 M10
3436 400 52 80 IMPACT BUFFER 3L 400X52X80 1 400 52 80 3 165 M10
3436 530 60 35 IMPACT BUFFER 4L 530X60X35 1 530 60 35 4 157 M10
H- Q = hole quantity; H-Sp = hole spacing;
H-Ø = hole diameter

Technical data subject to change.
