Page 97 - BPT Carpentry and Roofing Catalog

Roof, Wall, Facadeoof, Wall, Facade
R

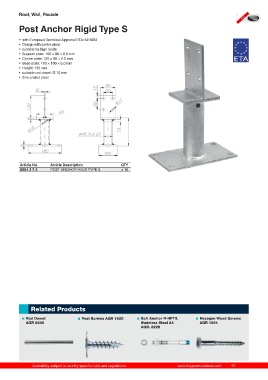

Post Anchor Rigid Type S

• with European Technical Approval ETA-13/1063
• Design with centre plate
• suitable for high loads
• Support plate: 100 × 80 × 8.0 mm
• Centre plate: 120 × 80 × 6.0 mm
• Base plate: 180 × 100 × 6.0 mm
• Height: 150 mm
• suitable rod dowel: Ø 10 mm
• Zinc-plated steel

Article No. Article Description QTY
8884 3 2 3 POST ANCHOR RIGID TYPE S e 10
