Roof, Wall, Facade

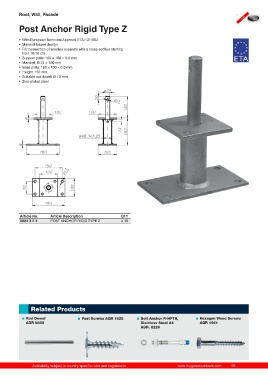

Post Anchor Rigid Type Z
• With European Technical Approval ETA-13/1063
• Mandrel-based design
• For connection of wooden supports with a cross-section starting
from 10/10 cm
• Support plate: 100 × 100 × 8.0 mm
• Mandrel: Ø 24 × 120 mm
• Base plate: 180 × 100 × 6.0 mm
• Height: 150 mm
• Suitable rod dowel: Ø 10 mm
• Zinc-plated steel
Article No. Article Description QTY
8884 3 2 4 POST ANCHOR RIGID TYPE Z e 10
