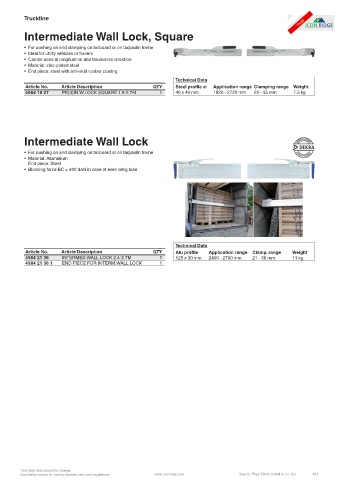

Page 872 - Icon Ridge Automotive & Truck Catalog

Truckline

Intermediate Wall Lock, Square

• For pushing on and clamping on tailboard or on tarpaulin frame
• Ideal for utility vehicles or trailers
• Can be used in longitudinal and transverse direction
• Material: zinc-plated steel
• End piece: steel with anti-skid rubber coating
Technical Data
Article No. Article Description QTY Steel profile zi Application range Clamping range Weight
4984 19 27 PK(4)IN.W.LOCK SQUARE 1.9-2.7M 1 40 x 40 mm 1920 - 2720 mm 25 - 35 mm 7.5 kg

Intermediate Wall Lock

• For pushing on and clamping on tailboard or on tarpaulin frame
• Material: Aluminium
End piece: Steel
• Blocking force BC = 400 daN in case of even wing load

Technical Data
Article No. Article Description QTY Alu profile Application range Clamp. range Weight
4984 21 36 INTERMED.WALL LOCK 2.4-2.7M 1 125 x 30 mm 2400 - 2700 mm 21 - 36 mm 11 kg
4984 21 36 1 END PIECE FOR INTERM.WALL LOCK 1

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 872
