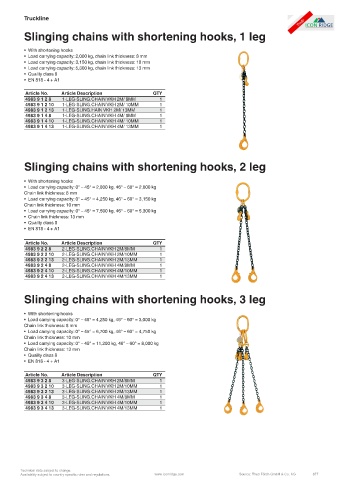

Page 877 - Icon Ridge Automotive & Truck Catalog

Truckline

Slinging chains with shortening hooks, 1 leg

• With shortening hooks
• Load carrying capacity: 2,000 kg, chain link thickness: 8 mm
• Load carrying capacity: 3,150 kg, chain link thickness: 10 mm
• Load carrying capacity: 5,300 kg, chain link thickness: 13 mm
• Quality class 8
• EN 818 - 4 + A1

Article No. Article Description QTY
4983 9 1 2 8 1-LEG-SLING.CHAIN VKH 2M/ 8MM 1
4983 9 1 2 10 1-LEG-SLING.CHAIN VKH 2M/ 10MM 1
4983 9 1 2 13 1-LEG-SLING.HAIN VKH 2M/ 13MM 1
4983 9 1 4 8 1-LEG-SLING.CHAIN VKH 4M/ 8MM 1
4983 9 1 4 10 1-LEG-SLING.CHAIN VKH 4M/ 10MM 1
4983 9 1 4 13 1-LEG-SLING.CHAIN VKH 4M/ 13MM 1

Slinging chains with shortening hooks, 2 leg

• With shortening hooks
• Load carrying capacity: 0° – 45° = 2,800 kg, 46° – 60° = 2,000 kg
Chain link thickness: 8 mm
• Load carrying capacity: 0° – 45° = 4,250 kg, 46° – 60° = 3,150 kg
Chain link thickness: 10 mm
• Load carrying capacity: 0° – 45° = 7,500 kg, 46° – 60° = 5,300 kg
• Chain link thickness: 13 mm
• Quality class 8
• EN 818 - 4 + A1

Article No. Article Description QTY
4983 9 2 2 8 2-LEG-SLING.CHAIN VKH 2M/8MM 1
4983 9 2 2 10 2-LEG-SLING.CHAIN VKH 2M/10MM 1
4983 9 2 2 13 2-LEG-SLING.CHAIN VKH 2M/13MM 1
4983 9 2 4 8 2-LEG-SLING.CHAIN VKH 4M/8MM 1
4983 9 2 4 10 2-LEG-SLING.CHAIN VKH 4M/10MM 1
4983 9 2 4 13 2-LEG-SLING.CHAIN VKH 4M/13MM 1

Slinging chains with shortening hooks, 3 leg

• With shortening hooks
• Load carrying capacity: 0° – 45° = 4,250 kg, 46° – 60° = 3,000 kg
Chain link thickness: 8 mm
• Load carrying capacity: 0° – 45° = 6,700 kg, 46° – 60° = 4,750 kg
Chain link thickness: 10 mm
• Load carrying capacity: 0° – 45° = 11,200 kg, 46° – 60° = 8,000 kg
Chain link thickness: 13 mm
• Quality class 8
• EN 818 - 4 + A1

Article No. Article Description QTY
4983 9 3 2 8 3-LEG-SLING.CHAIN VKH 2M/8MM 1
4983 9 3 2 10 3-LEG-SLING.CHAIN VKH 2M/10MM 1
4983 9 3 2 13 3-LEG-SLING.CHAIN VKH 2M/13MM 1
4983 9 3 4 8 3-LEG-SLING.CHAIN VKH 4M/8MM 1
4983 9 3 4 10 3-LEG-SLING.CHAIN VKH 4M/10MM 1
4983 9 3 4 13 3-LEG-SLING.CHAIN VKH 4M/13MM 1

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 877
