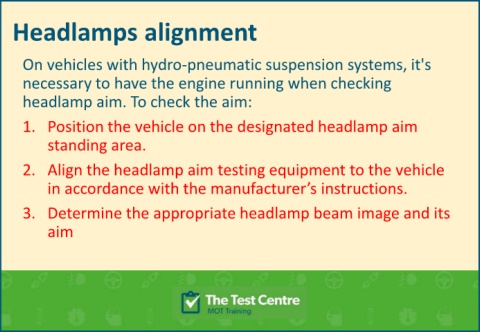

Headlamps alignment
On vehicles with hydro-pneumatic suspension systems, it's
necessary to have the engine running when checking
headlamp aim. To check the aim:
1. Position the vehicle on the designated headlamp aim
standing area.
2. Align the headlamp aim testing equipment to the vehicle
in accordance with the manufacturer’s instructions.
3. Determine the appropriate headlamp beam image and its
aim
