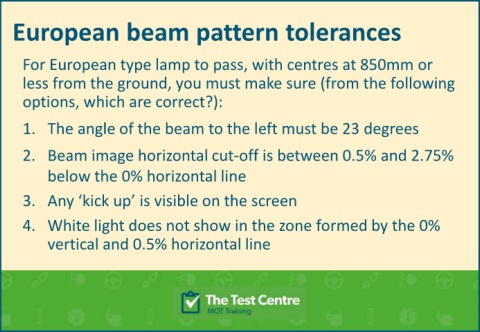

European beam pattern tolerances

For European type lamp to pass, with centres at 850mm or

less from the ground, you must make sure (from the following

options, which are correct?):

1. The angle of the beam to the left must be 23 degrees

2. Beam image horizontal cut-off is between 0.5% and 2.75%

below the 0% horizontal line

3. Any ‘kick up’ is visible on the screen

4. White light does not show in the zone formed by the 0%

vertical and 0.5% horizontal line
