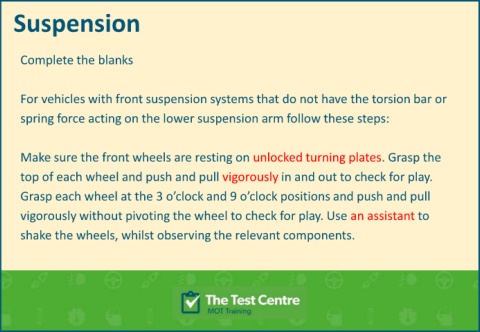

Suspension
Complete the blanks
For vehicles with front suspension systems that do not have the torsion bar or
spring force acting on the lower suspension arm follow these steps:
Make sure the front wheels are resting on unlocked turning plates. Grasp the
top of each wheel and push and pull vigorously in and out to check for play.
Grasp each wheel at the 3 o’clock and 9 o’clock positions and push and pull
vigorously without pivoting the wheel to check for play. Use an assistant to
shake the wheels, whilst observing the relevant components.
