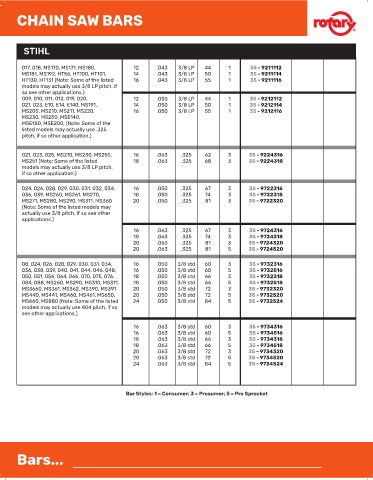

Page 3 - JEL STIHL AFTERMARKET CATALOG_AUG.2025

CHAIN SAW BARS

STIHL

017, 018, MS170, MS171, MS180, 12 .043 3/8 LP 44 1 35 - 9211112
MS181, MS192, HT56, HT100, HT101, 14 .043 3/8 LP 50 1 35 - 9211114
HT130, HT131 (Note: Some of the listed 16 .043 3/8 LP 55 1 35 - 9211116
models may actually use 3/8 LP pitch, if
so see other applications.)
009, 010, 011, 012, 019, 020, 12 .050 3/8 LP 44 1 35 - 9212112
021, 023, E10, E14, E140, MS191, 14 .050 3/8 LP 50 1 35 - 9212114
MS200, MS210, MS211, MS220, 16 .050 3/8 LP 55 1 35 - 9212116
MS230, MS250, MSE140,
MSE180, MSE200, (Note: Some of the
listed models may actually use .325
pitch, if so other application.)

021, 023, 025, MS210, MS230, MS250, 16 .063 .325 62 3 35 - 9224316
MS251 (Note: Some of the listed 18 .063 .325 68 3 35 - 9224318
models may actually use 3/8 LP pitch,
if so other application.)

024, 026, 028, 029, 030, 031, 032, 034, 16 .050 .325 67 3 35 - 9722316
036, 039, MS260, MS261, MS270, 18 .050 .325 74 3 35 - 9722318
MS271, MS280, MS290, MS311, MS360 20 .050 .325 81 3 35 - 9722320
(Note: Some of the listed models may
actually use 3/8 pitch, if so see other
applications.)
16 .063 .325 67 3 35 - 9724316
18 .063 .325 74 3 35 - 9724318
20 .063 .325 81 3 35 - 9724320
20 .063 .325 81 5 35 - 9724520

08, 024, 026, 028, 029, 030, 031, 034, 16 .050 3/8 std 60 3 35 - 9732316
036, 038, 039, 040, 041, 044, 046, 048, 16 .050 3/8 std 60 5 35 - 9732516
050, 051, 056, 064, 066, 070, 075, 076, 18 .050 3/8 std 66 3 35 - 9732318
084, 088, MS260, MS290, MS310, MS311, 18 .050 3/8 std 66 5 35 - 9732518
MS3660, MS361, MS362, MS390, MS391 20 .050 3/8 std 72 3 35 - 9732320
MS440, MS441, MS460, MS461, MS650, 20 .050 3/8 std 72 5 35 - 9732520
MS660, MS880 (Note: Some of the listed 24 .050 3/8 std 84 5 35 - 9732524
models may actually use 404 pitch, if so
see other applications.)

16 .063 3/8 std 60 3 35 - 9734316
16 .063 3/8 std 60 5 35 - 9734516
18 .063 3/8 std 66 3 35 - 9734318
18 .063 3/8 std 66 5 35 - 9734518
20 .063 3/8 std 72 3 35 - 9734320
20 .063 3/8 std 72 5 35 - 9734520
24 .063 3/8 std 84 5 35 - 9734524

Bar Styles: 1 = Consumer; 3 = Prosumer; 5 = Pro Sprocket

Bars...
