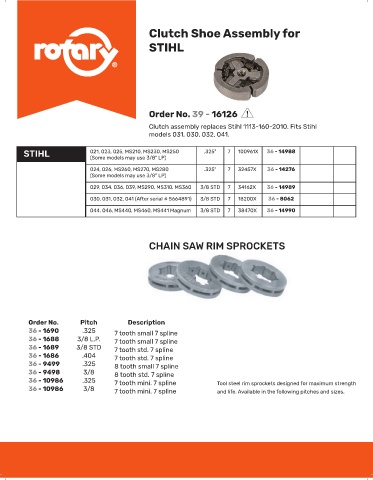

Page 8 - JEL STIHL AFTERMARKET CATALOG_AUG.2025
P. 8
Clutch Shoe Assembly for
STIHL
Order No. 39 - 16126
Clutch assembly replaces Stihl 1113-160-2010. Fits Stihl
models 031, 030, 032, 041.
STIHL 021, 023, 025, MS210, MS230, MS250 .325" 7 100961X 36 - 14988
(Some models may use 3/8" LP)
024, 026, MS260, MS270, MS280 .325" 7 32457X 36 - 14276
(Some models may use 3/8" LP)
029, 034, 036, 039, MS290, MS310, MS360 3/8 STD 7 34162X 36 - 14989
030, 031, 032, 041 (After serial # 5664891) 3/8 STD 7 18200X 36 - 8062
044, 046, MS440, MS460, MS441 Magnum 3/8 STD 7 38470X 36 - 14990
CHAIN SAW RIM SPROCKETS
Order No. Pitch Description
36 - 1690 .325 7 tooth small 7 spline
36 - 1688 3/8 L.P. 7 tooth small 7 spline
36 - 1689 3/8 STD 7 tooth std. 7 spline
36 - 1686 .404 7 tooth std. 7 spline
36 - 9499 .325 8 tooth small 7 spline
36 - 9498 3/8 8 tooth std. 7 spline
36 - 10986 .325 7 tooth mini. 7 spline Tool steel rim sprockets designed for maximum strength
36 - 10986 3/8 7 tooth mini. 7 spline and life. Available in the following pitches and sizes.
