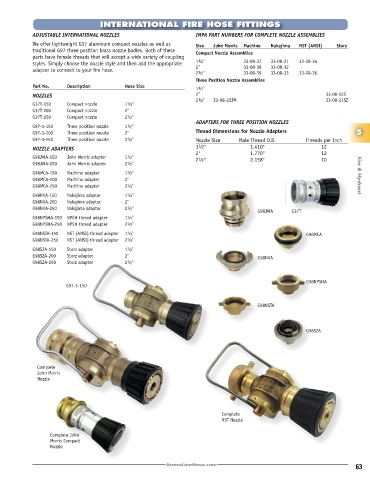

Page 65 - 2022FittingsCatalog

INTERNATIONAL FIRE HOSE FITTINGS
ADJUSTABLE INTERNATIONAL NOZZLES IMPA PART NUMBERS FOR COMPLETE NOZZLE ASSEMBLIES
We offer lightweight G37 aluminum compact nozzles as well as Size John Morris Machino Nakajima NST (ANSI) Storz
traditional G97 three position brass nozzle bodies. Both of these Compact Nozzle Assemblies
parts have female threads that will accept a wide variety of coupling
styles. Simply choose the nozzle style and then add the appropriate 1 1 ⁄2" 33-08-37 33-08-31 33-08-34
adapter to connect to your fire hose. 2" 33-08-38 33-08-32
2 1 ⁄2" 33-08-39 33-08-33 33-08-36
Three Position Nozzle Assemblies
Part No. Description Hose Size 1 1 ⁄2"
NOZZLES 2" 33-08-22S
2 1 ⁄2" 33-08-23JM 33-08-21SZ
G37T-150 Compact nozzle 1 1 ⁄2"
G37T-200 Compact nozzle 2"
G37T-250 Compact nozzle 2 1 ⁄2"
ADAPTERS FOR THREE POSITION NOZZLES
G97-3-150 Three position nozzle 1 1 ⁄2"
G97-3-200 Three position nozzle 2" Thread Dimensions for Nozzle Adapters 5
G97-3-250 Three position nozzle 2 1 ⁄2" Nozzle Size Male Thread O.D. Threads per Inch
NOZZLE ADAPTERS 1 1 ⁄2" 1.410" 12
2" 1.770" 12
G98JMA-150 John Morris adapter 1 1 ⁄2" 2 1 ⁄2" 2.158" 10
G98JMA-250 John Morris adapter 2 1 ⁄2"
G98MCA-150 Machino adapter 1 1 ⁄2" Fire & Hydrant
G98MCA-200 Machino adapter 2"
G98MCA-250 Machino adapter 2 1 ⁄2"
G98NKA-150 Nakajima adapter 1 1 ⁄2"
G98NKA-200 Nakajima adapter 2"
G98NKA-250 Nakajima adapter 2 1 ⁄2"
G98JMA G37T
G98NPSHA-150 NPSH thread adapter 1 1 ⁄2"
G98NPSHA-250 NPSH thread adapter 2 1 ⁄2"
G98NSTA-150 NST (ANSI) thread adapter 1 1 ⁄2" G98MCA
G98NSTA-250 NST (ANSI) thread adapter 2 1 ⁄2"
G98SZA-150 Storz adapter 1 1 ⁄2"
G98SZA-200 Storz adapter 2" G98NKA
G98SZA-250 Storz adapter 2 1 ⁄2"

G98NPSHA
G97-3-150

G98NSTA

G98SZA

Complete
John Morris
Nozzle

Complete
NST Nozzle

Complete John
Morris Compact
Nozzle

63
