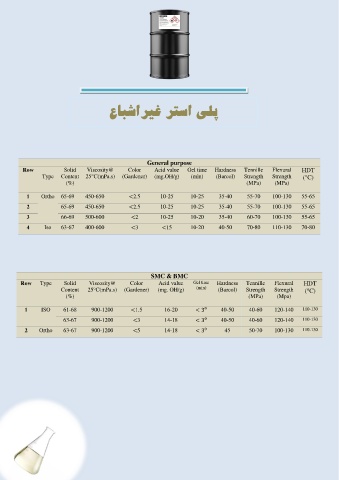

Page 6 - Product Catalog Template US
P. 6
عابشاریغ رتسا یلپ
General purpose
Row Solid Viscosity@ Color Acid value Gel time Hardness Tennille Flexural HDT
Type Content 25°C(mPa.s) (Gardener) (mg.OH/g) (min) (Barcol) Strength Strength (°C)
(%) (MPa) (MPa)
1 Ortho 65-69 450-650 <2.5 10-25 10-25 35-40 55-70 100-130 55-65
2 65-69 450-650 <2.5 10-25 10-25 35-40 55-70 100-130 55-65
3 66-69 500-600 <2 10-25 10-20 35-40 60-70 100-130 55-65
4 Iso 63-67 400-600 <3 <15 10-20 40-50 70-80 110-130 70-80
SMC & BMC
Row Type Solid Viscosity@ Color Acid value Gel time Hardness Tennille Flexural HDT
Content 25°C(mPa.s) (Gardener) (mg. OH/g) (min) (Barcol) Strength Strength (°C)
(%) (MPa) (Mpa)
1 ISO 61-68 900-1200 <1.5 16-20 < 3 40-50 40-60 120-140 110-130
0
0
63-67 900-1200 <3 14-18 < 3 40-50 40-60 120-140 110-130
2 Ortho 63-67 900-1200 <5 14-18 < 3 45 50-70 100-130 110-130
0
