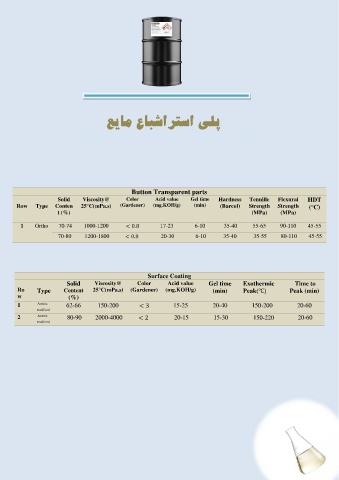

Page 9 - Product Catalog Template US
P. 9
عیام عابشارتسا یلپ
Button Transparent parts
Solid Viscosity@ Color Acid value Gel time Hardness Tennille Flexural HDT
Row Type Conten 25°C(mPa.s) (Gardener) (mg.KOH/g) (min) (Barcol) Strength Strength (°C)
t (%) (MPa) (MPa)
1 Ortho 70-74 1000-1200 < 0.8 17-23 6-10 35-40 55-65 90-110 45-55
70-80 1200-1800 < 0.8 20-30 6-10 35-40 35-55 80-110 45-55
Surface Coating
Solid Viscosity@ Color Acid value Gel time Exothermic Time to
Ro Type Content 25°C(mPa.s) (Gardener) (mg.KOH/g) (min) Peak(℃) Peak (min)
w (%)
1 Acrutic 62-66 150-200 < 3 15-25 20-40 150-200 20-60
modfond
2 Acrutic 80-90 2000-4000 < 2 20-15 15-30 150-220 20-60
modfond
