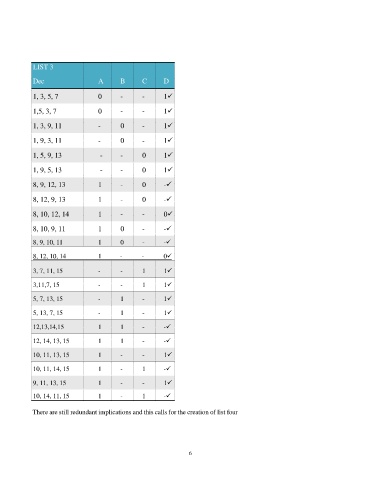

LIST 3
Dec A B C D
1, 3, 5, 7 0 - - 1✓
1,5, 3, 7 0 - - 1✓
1, 3, 9, 11 - 0 - 1✓
1, 9, 3, 11 - 0 - 1✓
1, 5, 9, 13 - - 0 1✓
1, 9, 5, 13 - - 0 1✓
8, 9, 12, 13 1 - 0 -✓
8, 12, 9, 13 1 - 0 -✓
8, 10, 12, 14 1 - - 0✓
8, 10, 9, 11 1 0 - -✓
8, 9, 10, 11 1 0 - -✓
8, 12, 10, 14 1 - - 0✓
3, 7, 11, 15 - - 1 1✓
3,11,7, 15 - - 1 1✓
5, 7, 13, 15 - 1 - 1✓
5, 13, 7, 15 - 1 - 1✓
12,13,14,15 1 1 - -✓
12, 14, 13, 15 1 1 - -✓
10, 11, 13, 15 1 - - 1✓
10, 11, 14, 15 1 - 1 -✓
9, 11, 13, 15 1 - - 1✓
10, 14, 11, 15 1 - 1 -✓
There are still redundant implications and this calls for the creation of list four
