P. 44

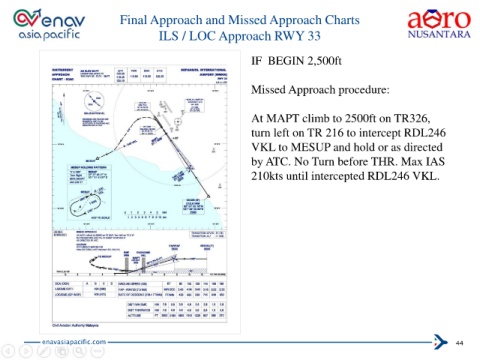

Final Approach and Missed Approach Charts

                                                 ILS / LOC Approach RWY 33



                                                                            IF BEGIN 2,500ft




                                                                            Missed Approach procedure:



                                                                            At MAPT climb to 2500ft on TR326,

                                                                            turn left on TR 216 to intercept RDL246
                                                                            VKL to MESUP and hold or as directed

                                                                            by ATC. No Turn before THR. Max IAS

                                                                            210kts until intercepted RDL246 VKL.
