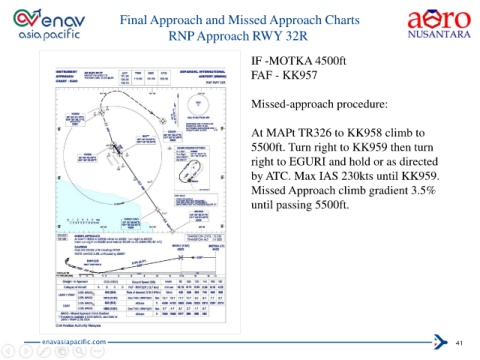

Final Approach and Missed Approach Charts

                                                    RNP Approach RWY 32R



                                                                            IF -MOTKA 4500ft

                                                                            FAF - KK957



                                                                            Missed-approach procedure:




                                                                            At MAPt TR326 to KK958 climb to
                                                                            5500ft. Turn right to KK959 then turn

                                                                            right to EGURI and hold or as directed

                                                                            by ATC. Max IAS 230kts until KK959.
                                                                            Missed Approach climb gradient 3.5%

                                                                            until passing 5500ft.
