0 3 SCULP TURE WORK SHOP & GALLER Y
A CTIVE S TRA TEG Y

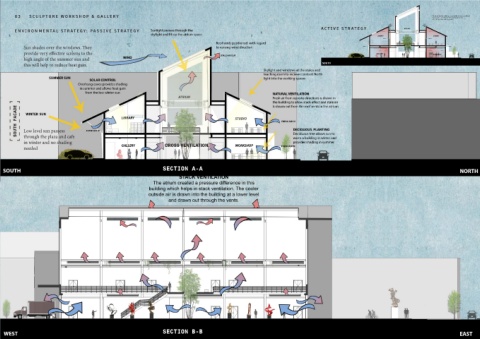

ENVIR ONMENT AL S TRA TEG Y : P ASSIVE S TRA TEG Y
Sun shades over the windows. They
provide very effective screens to the
high angle of the summer sun and
this will help to reduce heat gain.
SOUTH FACADE Low level sun passess
through the plaza and cafe
in winter and no shading
needed CROSS VENTILATION.
SECTION A-A
SECTION B-B
