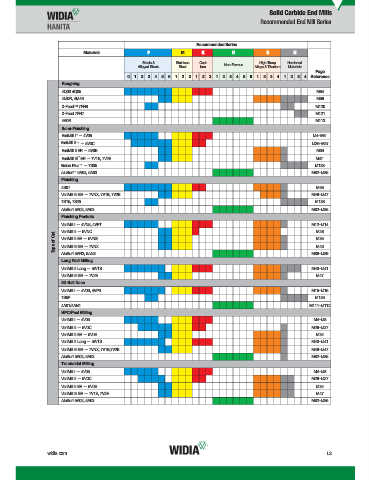

Solid Carbide End Mills
Recommended End Mill Series

Recommended Series
Materials P M K N S H
Steels & Stainless Cast High-Temp Hardened
Alloyed Steels Steel Iron Non-Ferrous Alloys & Titanium Materials
Page
0 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 5 6 1 2 3 4 1 2 3 4 Reference
Roughing
4Q03 4Q05 M54
4M0R, 4M4R M56
X-Feed™ 7FN6 M120
X-Feed 7FN7 M121
4A0R M113
Semi-Finishing
VariMill I ™ — 4V05 M4–M8
VariMill II ™ — 5V0C M26–M27
VariMill II ER — 5V0E M34
VariMill III ™ ER — 7V1E, 7V2E M47
Vision Plus ™ — 7S05 M138
AluSurf ™ 5A02, 5A03 M82–M85
Finishing
4S07 M66
VariMill III ER — 7VNX, 7V1E, 7V2E M46–M47
7S15, 7S25 M138
AluSurf 5A02, 5A03 M82–M85
Finishing Pockets
VariMill I — 4VN5, 4VPT M12–M14
VariMill II — 5VNC M28
Type of Cut VariMill II ER — 5VNE M35
M46
VariMill III ER — 7VNX
AluSurf 5AN2, 5AN3 M86–M89
Long Wall Milling
VariMill II Long — 5W1S M40–M41
VariMill III ER — 7V2E M47
3D Ball Nose
VariMill I — 4V00, 4VP0 M15–M16
7S5F M139
4A01/4AN1 M111–M112
HPC/Peel Milling
VariMill I — 4V05 M4–M8
VariMill II — 5V0C M26–M27
VariMill II ER — 5V0E M34
VariMill II Long — 5W1S M40–M41
VariMill III ER — 7VNX, 7V1E,7V2E M46–M47
AluSurf 5A02, 5A03 M82–M85
Trochoidal Milling
VariMill I — 4V05 M4–M8
VariMill II — 5V0C M26–M27
VariMill II ER — 5V0E M34
VariMill III ER — 7V1E, 7V2E M47
AluSurf 5A02, 5A03 M82–M85
