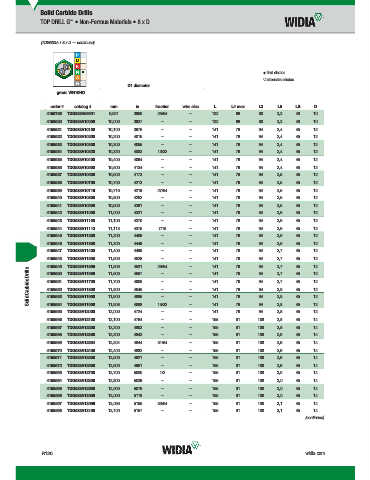

Page 1438 - Master Catalog 2017, Inch

Solid Carbide Drills
TOP DRILL G • Non-Ferrous Materials • 8 x D
™

(TDG533A • 8 x D — continued)

first choice
alternate choice
D1 diameter
grade WN10HD
WN10HD
order # catalog # mm in fraction wire size L L4 max L3 L5 LS D
4158756 TDG533A09921 9,921 .3906 25/64 — 122 68 80 2,3 40 10
4158520 TDG533A10000 10,000 .3937 — — 122 68 80 2,3 40 10
4158521 TDG533A10100 10,100 .3976 — — 141 79 94 2,4 45 12
4158522 TDG533A10200 10,200 .4016 — — 141 79 94 2,4 45 12
4158533 TDG533A10300 10,300 .4055 — — 141 79 94 2,4 45 12
4158534 TDG533A10320 10,320 .4063 13/32 — 141 79 94 2,4 45 12
4158535 TDG533A10400 10,400 .4094 — — 141 79 94 2,4 45 12
4158536 TDG533A10500 10,500 .4134 — — 141 79 94 2,4 45 12
4158537 TDG533A10600 10,600 .4173 — — 141 79 94 2,5 45 12
4158538 TDG533A10700 10,700 .4213 — — 141 79 94 2,5 45 12
4158539 TDG533A10716 10,716 .4219 27/64 — 141 79 94 2,5 45 12
4158540 TDG533A10800 10,800 .4252 — — 141 79 94 2,5 45 12
4158541 TDG533A10900 10,900 .4291 — — 141 79 94 2,5 45 12
4158542 TDG533A11000 11,000 .4331 — — 141 79 94 2,6 45 12
4158543 TDG533A11100 11,100 .4370 — — 141 79 94 2,6 45 12
4158544 TDG533A11113 11,113 .4375 7/16 — 141 79 94 2,6 45 12
4158545 TDG533A11200 11,200 .4409 — — 141 79 94 2,6 45 12
4158546 TDG533A11300 11,300 .4449 — — 141 79 94 2,6 45 12
4158547 TDG533A11400 11,400 .4488 — — 141 79 94 2,7 45 12
4158548 TDG533A11500 11,500 .4528 — — 141 79 94 2,7 45 12
4158549 TDG533A11509 11,509 .4531 29/64 — 141 79 94 2,7 45 12
Solid Carbide Drills 4158551 TDG533A11700 11,700 .4606 — — 141 79 94 2,7 45 12
—
12
141
.4567
11,600
—
2,7
94
4158550 TDG533A11600
45
79
12
2,8
11,800
141
79
94
.4646
—
—
4158552 TDG533A11800
45
141
45
.4685
94
79
—
—
12
11,900
4158563 TDG533A11900
2,8
4158564 TDG533A11908
141
4158565 TDG533A12000 11,908 .4688 15/32 — 141 79 94 2,8 45 12
2,8
79
94
—
.4724
—
45
12
12,000
4158566 TDG533A12100 12,100 .4764 — — 155 91 108 2,8 45 14
4158567 TDG533A12200 12,200 .4803 — — 155 91 108 2,8 45 14
4158568 TDG533A12300 12,300 .4843 — — 155 91 108 2,9 45 14
4158569 TDG533A12304 12,304 .4844 31/64 — 155 91 108 2,9 45 14
4158570 TDG533A12400 12,400 .4882 — — 155 91 108 2,9 45 14
4158571 TDG533A12500 12,500 .4921 — — 155 91 108 2,9 45 14
4158572 TDG533A12600 12,600 .4961 — — 155 91 108 2,9 45 14
4158593 TDG533A12700 12,700 .5000 1/2 — 155 91 108 3,0 45 14
4158594 TDG533A12800 12,800 .5039 — — 155 91 108 3,0 45 14
4158595 TDG533A12900 12,900 .5079 — — 155 91 108 3,0 45 14
4158596 TDG533A13000 13,000 .5118 — — 155 91 108 3,0 45 14
4158597 TDG533A13096 13,096 .5156 33/64 — 155 91 108 3,1 45 14
4158598 TDG533A13100 13,100 .5157 — — 155 91 108 3,1 45 14
(continued)
