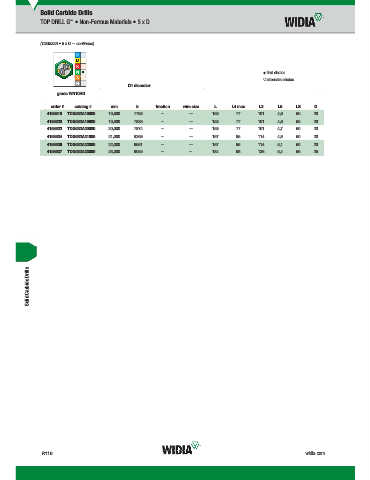

Page 1434 - Master Catalog 2017, Inch

Solid Carbide Drills
TOP DRILL G • Non-Ferrous Materials • 5 x D
™

(TDG532A • 5 x D — continued)

first choice
alternate choice
D1 diameter
grade WN10HD
WN10HD
order # catalog # mm in fraction wire size L L4 max L3 L5 LS D
4158618 TDG532A19800 19,800 .7795 — — 153 77 101 4,6 50 20
4158620 TDG532A19900 19,900 .7835 — — 153 77 101 4,6 50 20
4158622 TDG532A20000 20,000 .7874 — — 153 77 101 4,7 50 20
4158634 TDG532A21000 21,000 .8268 — — 167 85 114 4,9 50 20
4158636 TDG532A22000 22,000 .8661 — — 167 85 114 5,1 50 20
4158637 TDG532A23000 23,000 .9055 — — 184 98 126 5,4 56 25

Solid Carbide Drills

R116 widia.com
