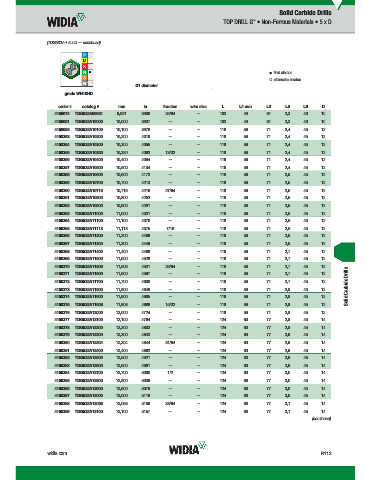

Page 1431 - Master Catalog 2017, Inch

Solid Carbide Drills
™
TOP DRILL G • Non-Ferrous Materials • 5 x D

(TDG532A • 5 x D — continued)

first choice
alternate choice
D1 diameter
grade WN10HD
WN10HD
order # catalog # mm in fraction wire size L L4 max L3 L5 LS D
4158074 TDG532A09921 9,921 .3906 25/64 — 103 49 61 2,3 40 10
4158081 TDG532A10000 10,000 .3937 — — 103 49 61 2,3 40 10
4158082 TDG532A10100 10,100 .3976 — — 118 56 71 2,4 45 12
4158353 TDG532A10200 10,200 .4016 — — 118 56 71 2,4 45 12
4158354 TDG532A10300 10,300 .4055 — — 118 56 71 2,4 45 12
4158355 TDG532A10320 10,320 .4063 13/32 — 118 56 71 2,4 45 12
4158356 TDG532A10400 10,400 .4094 — — 118 56 71 2,4 45 12
4158357 TDG532A10500 10,500 .4134 — — 118 56 71 2,4 45 12
4158358 TDG532A10600 10,600 .4173 — — 118 56 71 2,5 45 12
4158359 TDG532A10700 10,700 .4213 — — 118 56 71 2,5 45 12
4158360 TDG532A10716 10,716 .4219 27/64 — 118 56 71 2,5 45 12
4158361 TDG532A10800 10,800 .4252 — — 118 56 71 2,5 45 12
4158362 TDG532A10900 10,900 .4291 — — 118 56 71 2,5 45 12
4158363 TDG532A11000 11,000 .4331 — — 118 56 71 2,6 45 12
4158364 TDG532A11100 11,100 .4370 — — 118 56 71 2,6 45 12
4158365 TDG532A11113 11,113 .4375 7/16 — 118 56 71 2,6 45 12
4158366 TDG532A11200 11,200 .4409 — — 118 56 71 2,6 45 12
4158367 TDG532A11300 11,300 .4449 — — 118 56 71 2,6 45 12
4158368 TDG532A11400 11,400 .4488 — — 118 56 71 2,7 45 12
4158369 TDG532A11500 11,500 .4528 — — 118 56 71 2,7 45 12
4158370 TDG532A11509 11,509 .4531 29/64 — 118 56 71 2,7 45 12
Solid Carbide Drills
4158371 TDG532A11600 11,600 .4567 — — 118 56 71 2,7 45 12
4158372 TDG532A11700 11,700 .4606 — — 118 56 71 2,7 45 12
4158373 TDG532A11800 11,800 .4646 — — 118 56 71 2,8 45 12
4158374 TDG532A11900 11,900 .4685 — — 118 56 71 2,8 45 12
4158375 TDG532A11908 11,908 .4688 15/32 — 118 56 71 2,8 45 12
4158376 TDG532A12000 12,000 .4724 — — 118 56 71 2,8 45 12
4158377 TDG532A12100 12,100 .4764 — — 124 60 77 2,8 45 14
4158378 TDG532A12200 12,200 .4803 — — 124 60 77 2,8 45 14
4158379 TDG532A12300 12,300 .4843 — — 124 60 77 2,9 45 14
4158380 TDG532A12304 12,304 .4844 31/64 — 124 60 77 2,9 45 14
4158381 TDG532A12400 12,400 .4882 — — 124 60 77 2,9 45 14
4158382 TDG532A12500 12,500 .4921 — — 124 60 77 2,9 45 14
4158383 TDG532A12600 12,600 .4961 — — 124 60 77 2,9 45 14
4158384 TDG532A12700 12,700 .5000 1/2 — 124 60 77 3,0 45 14
4158385 TDG532A12800 12,800 .5039 — — 124 60 77 3,0 45 14
4158386 TDG532A12900 12,900 .5079 — — 124 60 77 3,0 45 14
4158387 TDG532A13000 13,000 .5118 — — 124 60 77 3,0 45 14
4158388 TDG532A13096 13,096 .5156 33/64 — 124 60 77 3,1 45 14
4158389 TDG532A13100 13,100 .5157 — — 124 60 77 3,1 45 14
(continued)

widia.com R113
