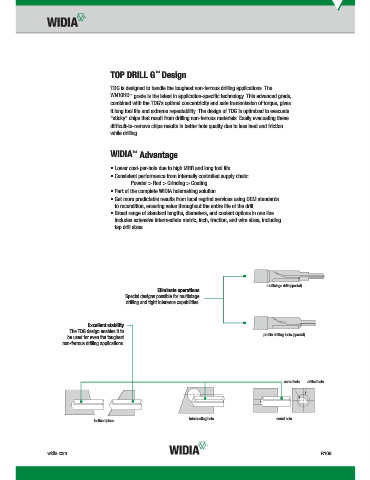

TOP DRILL G Design

TDG is designed to handle the toughest non-ferrous drilling applications. The
WN10HD grade is the latest in application-specific technology. This advanced grade,
™
combined with the TDG’s optimal concentricity and safe transmission of torque, gives
it long tool life and extreme repeatability. The design of TDG is optimized to evacuate
“sticky” chips that result from drilling non-ferrous materials. Easily evacuating these
difficult-to-remove chips results in better hole quality due to less heat and friction
while drilling.

™
WIDIA Advantage
• Lower cost-per-hole due to high MRR and long tool life.
• Consistent performance from internally controlled supply chain:
Powder > Rod > Grinding > Coating
• Part of the complete WIDIA holemaking solution.
• Get more predictable results from local regrind services using OEM standards
to recondition, ensuring value throughout the entire life of the drill.
• Broad range of standard lengths, diameters, and coolant options in one line.
Includes extensive intermediate metric, inch, fraction, and wire sizes, including
tap drill sizes.

multistage drill (special)
Eliminate operations
Special designs possible for multistage
drilling and tight tolerance capabilities.

Excellent stability
The TDG design enables it to
profile drilling tools (special)
be used for even the toughest
non-ferrous drilling applications.

cored hole drilled hole

intersecting hole cored hole
inclined plane

widia.com R109
