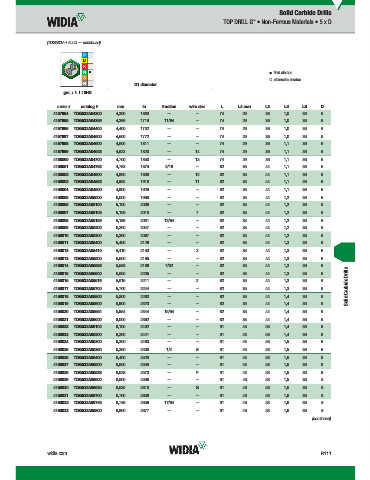

Page 1429 - Master Catalog 2017, Inch

Solid Carbide Drills
™
TOP DRILL G • Non-Ferrous Materials • 5 x D

(TDG532A • 5 x D — continued)

first choice
alternate choice
D1 diameter
grade WN10HD
WN10HD
order # catalog # mm in fraction wire size L L4 max L3 L5 LS D
4157994 TDG532A04300 4,300 .1693 — — 74 29 36 1,0 36 6
4157995 TDG532A04366 4,366 .1719 11/64 — 74 29 36 1,0 36 6
4157996 TDG532A04400 4,400 .1732 — — 74 29 36 1,0 36 6
4157997 TDG532A04500 4,500 .1772 — — 74 29 36 1,0 36 6
4157998 TDG532A04600 4,600 .1811 — — 74 29 36 1,1 36 6
4157999 TDG532A04623 4,623 .1820 — 14 74 29 36 1,1 36 6
4158000 TDG532A04700 4,700 .1850 — 13 74 29 36 1,1 36 6
4158001 TDG532A04763 4,763 .1875 3/16 — 82 35 44 1,1 36 6
4158002 TDG532A04800 4,800 .1890 — 12 82 35 44 1,1 36 6
4158003 TDG532A04852 4,852 .1910 — 11 82 35 44 1,1 36 6
4158004 TDG532A04900 4,900 .1929 — — 82 35 44 1,1 36 6
4158005 TDG532A05000 5,000 .1969 — — 82 35 44 1,2 36 6
4158006 TDG532A05100 5,100 .2008 — — 82 35 44 1,2 36 6
4158007 TDG532A05106 5,106 .2010 — 7 82 35 44 1,2 36 6
4158008 TDG532A05159 5,159 .2031 13/64 — 82 35 44 1,2 36 6
4158009 TDG532A05200 5,200 .2047 — — 82 35 44 1,2 36 6
4158010 TDG532A05300 5,300 .2087 — — 82 35 44 1,2 36 6
4158011 TDG532A05400 5,400 .2126 — — 82 35 44 1,3 36 6
4158012 TDG532A05410 5,410 .2130 — 3 82 35 44 1,3 36 6
4158013 TDG532A05500 5,500 .2165 — — 82 35 44 1,3 36 6
4158014 TDG532A05558 5,558 .2188 7/32 — 82 35 44 1,3 36 6
Solid Carbide Drills
4158015 TDG532A05600 5,600 .2205 — — 82 35 44 1,3 36 6
4158016 TDG532A05616 5,616 .2211 — 2 82 35 44 1,3 36 6
4158017 TDG532A05700 5,700 .2244 — — 82 35 44 1,3 36 6
4158018 TDG532A05800 5,800 .2283 — — 82 35 44 1,4 36 6
4158019 TDG532A05900 5,900 .2323 — — 82 35 44 1,4 36 6
4158020 TDG532A05954 5,954 .2344 15/64 — 82 35 44 1,4 36 6
4158021 TDG532A06000 6,000 .2362 — — 82 35 44 1,4 36 6
4158022 TDG532A06100 6,100 .2402 — — 91 43 53 1,4 36 8
4158023 TDG532A06200 6,200 .2441 — — 91 43 53 1,4 36 8
4158024 TDG532A06300 6,300 .2480 — — 91 43 53 1,5 36 8
4158025 TDG532A06350 6,350 .2500 1/4 E 91 43 53 1,5 36 8
4158026 TDG532A06400 6,400 .2520 — — 91 43 53 1,5 36 8
4158027 TDG532A06500 6,500 .2559 — — 91 43 53 1,5 36 8
4158028 TDG532A06528 6,528 .2570 — F 91 43 53 1,5 36 8
4158029 TDG532A06600 6,600 .2598 — — 91 43 53 1,5 36 8
4158030 TDG532A06630 6,630 .2610 — G 91 43 53 1,5 36 8
4158031 TDG532A06700 6,700 .2638 — — 91 43 53 1,6 36 8
4158032 TDG532A06746 6,746 .2656 17/64 — 91 43 53 1,6 36 8
4158033 TDG532A06800 6,800 .2677 — — 91 43 53 1,6 36 8
(continued)

widia.com R111
