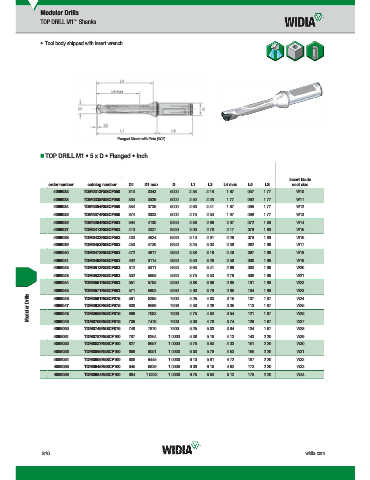

Page 1470 - Master Catalog 2017, Inch

Modular Drills
TOP DRILL M1 Shanks
™

• Tool body shipped with insert wrench.

Flanged Shank with Flats (SCF)

„ TOP DRILL M1 • 5 x D • Flanged • Inch

insert blade
order number catalog number D1 D1 max D L1 L3 L4 max L5 LS seat size
4099032 TDM0313R5SCF050 .313 .3343 .5000 2.38 2.16 1.67 .057 1.77 W10
4099033 TDM0335R5SCF050 .335 .3539 .5000 2.50 2.28 1.77 .062 1.77 W11
4099034 TDM0354R5SCF050 .354 .3736 .5000 2.63 2.41 1.87 .065 1.77 W12
4099035 TDM0374R5SCF050 .374 .3933 .5000 2.75 2.53 1.97 .068 1.77 W13
4099036 TDM0394R5SCF063 .394 .4130 .6250 2.88 2.66 2.07 .072 1.89 W14
4099037 TDM0413R5SCF063 .413 .4327 .6250 3.00 2.78 2.17 .076 1.89 W15
4099038 TDM0433R5SCF063 .433 .4524 .6250 3.13 2.91 2.26 .079 1.89 W16
4099039 TDM0453R5SCF063 .453 .4720 .6250 3.25 3.03 2.36 .082 1.89 W17
4099040 TDM0472R5SCF063 .472 .4917 .6250 3.38 3.16 2.46 .087 1.89 W18
4099041 TDM0492R5SCF063 .492 .5114 .6250 3.50 3.28 2.56 .090 1.89 W19
4099042 TDM0512R5SCF063 .512 .5311 .6250 3.63 3.41 2.66 .093 1.89 W20
4099043 TDM0532R5SCF063 .532 .5508 .6250 3.75 3.53 2.76 .098 1.89 W21
4099044 TDM0551R5SCF063 .551 .5705 .6250 3.88 3.66 2.85 .101 1.89 W22
4099045 TDM0571R5SCF063 .571 .5902 .6250 4.00 3.78 2.95 .104 1.89 W23
Modular Drills 4099047 TDM0630R5SCF075 .630 .6689 .7500 4.50 4.28 3.35 .113 1.97 W25
.107
1.97
W24
4.25
TDM0591R5SCF075
.7500
4.03
4099046
.6295
3.15
.591
.7083
.669
.7500
1.97
TDM0669R5SCF075
4099048
4.53
3.54
W26
4.75
.121
4099049
.7500
5.25
5.03
W28
3.94
.134
4099050 TDM0709R5SCF075 .709 .7476 .7500 5.00 4.78 3.74 .129 1.97 W27
.7870
.748
1.97
TDM0748R5SCF075
4099051 TDM0787R5SCF100 .787 .8264 1.0000 5.38 5.16 4.13 .143 2.20 W29
4099052 TDM0827R5SCF100 .827 .8657 1.0000 5.75 5.53 4.33 .151 2.20 W30
4099053 TDM0866R5SCF100 .866 .9051 1.0000 6.00 5.78 4.53 .156 2.20 W31
4099054 TDM0906R5SCF100 .906 .9445 1.0000 6.13 5.91 4.72 .167 2.20 W32
4099055 TDM0945R5SCF100 .945 .9839 1.0000 6.38 6.16 4.92 .173 2.20 W33
4099056 TDM0984R5SCF100 .984 1.0232 1.0000 6.75 6.53 5.12 .178 2.20 W34
