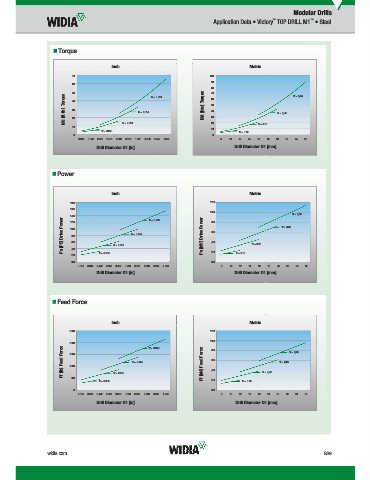

Page 1489 - Master Catalog 2017, Inch

Modular Drills
Application Data • Victory TOP DRILL M1 • Steel
™
™

„ Torque

Inch Metric
70 100
90
60
80
50 fz = 0.018 70 60 fz = 0,45
Md [ft.lb.] Torque 40 30 fz = 0.014 Md [Nm] Torque 50 40 fz = 0,35

10 20 fz = 0.010 30 20 fz = 0,25
10
fz = 0.006
fz = 0,15
0 0
0.315 0.394 0.472 0.551 0.630 0.709 0.787 0.866 0.945 1.024 8 10 12 14 16 18 20 22 24 26
Drill Diameter D1 [in] Drill Diameter D1 [mm]

„ Power

Inch Metric
18.0 12.0
16.0
10.0 fz = 0,45
14.0
Ps [PS] Drive Power 10.0 fz = 0.010 fz = 0.014 Ps [kW] Drive Power 6.0 fz = 0,25 fz = 0,35
fz = 0.018
12.0
8.0
8.0
4.0
6.0
4.0
2.0 fz = 0.006 2.0 fz = 0,15
0.0 0.0
0.315 0.394 0.472 0.551 0.630 0.709 0.787 0.866 0.945 1.024 8 10 12 14 16 18 20 22 24 26
Drill Diameter D1 [in] Drill Diameter D1 [mm]

„ Feed Force

Inch Metric
2500 12.0
10.0
2000 fz = 0.018 8.0
Ff [lb] Feed Force 1500 fz = 0.014 Ff [kN] Feed Force 6.0 fz = 0,35 fz = 0,45

1000
500 fz = 0.010 4.0 fz = 0,25
fz = 0.006 2.0 fz = 0,15
0 0.0
0.315 0.394 0.472 0.551 0.630 0.709 0.787 0.866 0.945 1.024 8 10 12 14 16 18 20 22 24 26
Drill Diameter D1 [in] Drill Diameter D1 [mm]

widia.com S29
