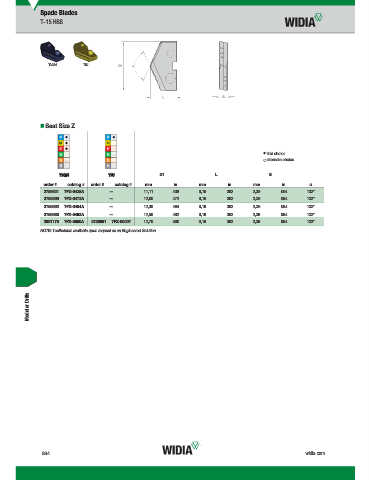

Page 1494 - Master Catalog 2017, Inch

Spade Blades
T-15 HSS

TiAlN TiN

„ Seat Size Z

first choice
alternate choice
D1 L S
TiAlN TiN D1 L S
TiN
TiAlN
order # catalog # order # catalog # mm in mm in mm in m
2759621 7FZ-0438A — 11,11 .438 9,19 .362 2,39 .094 132°
2759599 7FZ-0472A — 12,00 .472 9,19 .362 2,39 .094 132°
2759592 7FZ-0484A — 12,30 .484 9,19 .362 2,39 .094 132°
2759588 7FZ-0492A — 12,50 .492 9,19 .362 2,39 .094 132°
2891175 7FZ-0500A 2759581 7FZ-0500T 12,70 .500 9,19 .362 2,39 .094 132°
NOTE: Toolholders available upon request as an Engineered Solution.

Modular Drills
