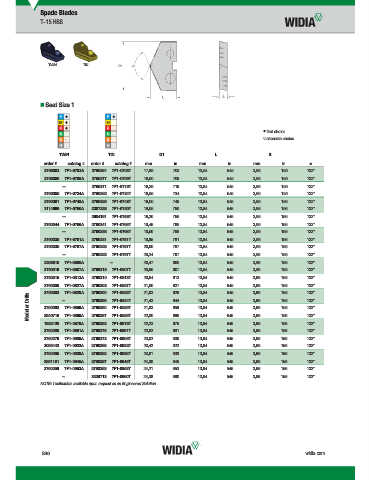

Page 1496 - Master Catalog 2017, Inch

Spade Blades
T-15 HSS

TiAlN TiN

„ Seat Size 1

first choice
alternate choice
D1 L S
TiAlN
TiAlN TiN D1 L S
TiN
order # catalog # order # catalog # mm in mm in mm in m
2760383 7F1-0703A 2760381 7F1-0703T 17,86 .703 13,84 .545 3,96 .156 132°
2760380 7F1-0709A 2760377 7F1-0709T 18,00 .709 13,84 .545 3,96 .156 132°
— 2760371 7F1-0719T 18,26 .719 13,84 .545 3,96 .156 132°
2760365 7F1-0734A 2760362 7F1-0734T 18,65 .734 13,84 .545 3,96 .156 132°
2760361 7F1-0748A 2760359 7F1-0748T 19,00 .748 13,84 .545 3,96 .156 132°
3114699 7F1-0750A 2387228 7F1-0750T 19,05 .750 13,84 .545 3,96 .156 132°
— 2604191 7F1-0756T 19,20 .756 13,84 .545 3,96 .156 132°
2760344 7F1-0766A 2760341 7F1-0766T 19,45 .766 13,84 .545 3,96 .156 132°
— 2760338 7F1-0768T 19,50 .768 13,84 .545 3,96 .156 132°
2760335 7F1-0781A 2760331 7F1-0781T 19,85 .781 13,84 .545 3,96 .156 132°
2760330 7F1-0787A 2760328 7F1-0787T 20,00 .787 13,84 .545 3,96 .156 132°
— 2760323 7F1-0797T 20,24 .797 13,84 .545 3,96 .156 132°
2255810 7F1-0806A — 20,47 .806 13,84 .545 3,96 .156 132°
2760319 7F1-0807A 2760316 7F1-0807T 20,50 .807 13,84 .545 3,96 .156 132°
2760315 7F1-0813A 2760310 7F1-0813T 20,64 .813 13,84 .545 3,96 .156 132°
21,00
2760305 7F1-0827A 2760303 7F1-0827T 21,03 .827 13,84 .545 3,96 .156 132°
2760300 7F1-0828T
3,96
.156
132°
.828
13,84
.545
2760302 7F1-0828A
Modular Drills 2760292 7F1-0859A 2760296 7F1-0844T 21,43 .844 13,84 .545 3,96 .156 132°
—
13,84
.859
21,83
.545
.156
132°
3,96
2760290 7F1-0859T
2940716 7F1-0866A
.545
1926120 7F1-0875A 2760287 7F1-0866T 22,00 .866 13,84 .545 3,96 .156 132°
.875
13,84
.156
132°
2760282 7F1-0875T
3,96
22,23
2760280 7F1-0891A 2760278 7F1-0891T 22,62 .891 13,84 .545 3,96 .156 132°
2760276 7F1-0906A 2760273 7F1-0906T 23,02 .906 13,84 .545 3,96 .156 132°
3099442 7F1-0922A 2760268 7F1-0922T 23,42 .922 13,84 .545 3,96 .156 132°
2760265 7F1-0938A 2760262 7F1-0938T 23,81 .938 13,84 .545 3,96 .156 132°
2891181 7F1-0945A 2760257 7F1-0945T 24,00 .945 13,84 .545 3,96 .156 132°
2760256 7F1-0953A 2760253 7F1-0953T 24,21 .953 13,84 .545 3,96 .156 132°
— 3339713 7F1-0960T 24,38 .960 13,84 .545 3,96 .156 132°
NOTE: Toolholders available upon request as an Engineered Solution.
S36 widia.com
