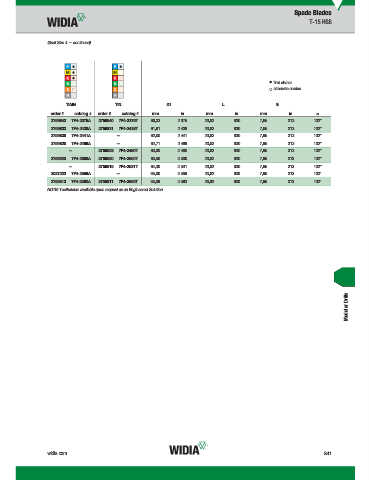

Page 1501 - Master Catalog 2017, Inch

Spade Blades
T-15 HSS

(Seat Size 4 — continued)

first choice
alternate choice
D1 L S
TiAlN TiN D1 L S
TiN
TiAlN
order # catalog # order # catalog # mm in mm in mm in m
2759843 7F4-2375A 2759840 7F4-2375T 60,33 2.375 23,62 .930 7,95 .313 132°
2759833 7F4-2438A 2759831 7F4-2438T 61,91 2.438 23,62 .930 7,95 .313 132°
2759830 7F4-2441A — 62,00 2.441 23,62 .930 7,95 .313 132°
2759828 7F4-2469A — 62,71 2.469 23,62 .930 7,95 .313 132°
— 2759823 7F4-2480T 63,00 2.480 23,62 .930 7,95 .313 132°
2759822 7F4-2500A 2759820 7F4-2500T 63,50 2.500 23,62 .930 7,95 .313 132°
— 2759816 7F4-2531T 64,30 2.531 23,62 .930 7,95 .313 132°
3027222 7F4-2559A — 65,00 2.559 23,62 .930 7,95 .313 132°
2759813 7F4-2563A 2759811 7F4-2563T 65,09 2.563 23,62 .930 7,95 .313 132°
NOTE: Toolholders available upon request as an Engineered Solution.

Modular Drills

widia.com S41
