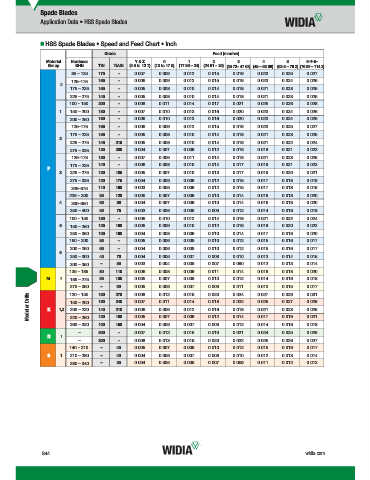

Page 1504 - Master Catalog 2017, Inch

Spade Blades
Application Data • HSS Spade Blades

„ HSS Spade Blades • Speed and Feed Chart • Inch
Grade Feed (mm/rev)
Material Hardness Y & Z 0 1 2 3 4 5 6–7–8–
Group BHN TiN TiAlN (9.5 to 12.7) (13 to 17.5) (17.86 – 24) (24.61 – 35) (35.72– 47.63) (48 – 65.09) (63.5 – 76.2) (76.99 – 114.3)
85 – 125 175 – 0.007 0.009 0.012 0.015 0.019 0.023 0.025 0.027
125–175 165 – 0.006 0.009 0.012 0.015 0.019 0.023 0.024 0.026
0
175 – 225 155 – 0.005 0.008 0.010 0.014 0.018 0.021 0.023 0.025
225 – 275 145 – 0.005 0.008 0.010 0.014 0.018 0.021 0.023 0.025
100 – 150 200 – 0.008 0.011 0.014 0.017 0.021 0.025 0.026 0.028
1 150 – 200 180 – 0.007 0.010 0.013 0.016 0.020 0.023 0.024 0.026
200 – 250 160 – 0.006 0.010 0.013 0.016 0.020 0.023 0.024 0.026
125–175 165 – 0.006 0.009 0.012 0.015 0.019 0.023 0.025 0.027
175 – 225 155 – 0.005 0.008 0.010 0.014 0.018 0.021 0.023 0.025
2
225 – 275 145 215 0.005 0.008 0.010 0.014 0.018 0.021 0.022 0.024
275 – 325 135 200 0.004 0.007 0.009 0.012 0.016 0.019 0.021 0.023
125–175 150 – 0.007 0.009 0.011 0.014 0.018 0.021 0.023 0.025
175 – 225 140 – 0.006 0.008 0.010 0.014 0.017 0.019 0.021 0.023
P
3 225 – 275 130 185 0.005 0.007 0.010 0.013 0.017 0.019 0.020 0.021
275 – 325 120 175 0.004 0.006 0.009 0.012 0.015 0.017 0.018 0.019
325–375 110 160 0.003 0.006 0.009 0.012 0.015 0.017 0.018 0.019
225 – 300 85 120 0.005 0.007 0.009 0.010 0.014 0.016 0.018 0.020
4 300–350 65 90 0.004 0.007 0.009 0.010 0.014 0.016 0.018 0.020
350 – 400 55 75 0.003 0.006 0.008 0.009 0.012 0.014 0.016 0.018
100 – 150 150 – 0.006 0.010 0.012 0.014 0.018 0.021 0.022 0.024
5 150 – 250 125 190 0.005 0.009 0.010 0.012 0.016 0.019 0.020 0.022
250 – 350 100 160 0.004 0.008 0.009 0.010 0.014 0.017 0.018 0.020
150 – 200 85 – 0.005 0.006 0.008 0.010 0.012 0.015 0.016 0.017
200 – 250 65 – 0.004 0.006 0.008 0.010 0.012 0.015 0.016 0.017
6
250 – 300 45 70 0.004 0.005 0.007 0.008 0.010 0.013 0.014 0.015
300 – 350 – 55 0.003 0.004 0.006 0.007 0.090 0.012 0.013 0.014
135 – 185 80 110 0.006 0.008 0.009 0.011 0.014 0.016 0.018 0.020
M 1 185 – 275 65 100 0.005 0.007 0.008 0.010 0.012 0.014 0.016 0.018
275 – 350 180 270 0.005 0.006 0.007 0.009 0.011 0.013 0.015 0.017
–
90
Modular Drills K 1,2 150 – 200 160 240 0.007 0.011 0.014 0.018 0.022 0.025 0.027 0.029
0.012
0.016
0.031
0.020
120 – 150
0.027
0.029
0.024
0.008
140
0.025
0.006
210
200 – 220
0.021
0.018
0.016
0.009
0.023
0.012
220 – 260
0.009
0.007
260 – 320 120 180 0.005 0.007 0.009 0.012 0.014 0.017 0.019 0.021
0.016
0.018
0.012
0.014
0.004
100
150
0.006
– 600 – 0.007 0.012 0.015 0.019 0.021 0.024 0.025 0.026
N 1
– 300 – 0.008 0.013 0.016 0.020 0.022 0.025 0.026 0.027
140 – 210 – 45 0.005 0.007 0.008 0.010 0.012 0.015 0.016 0.017
S 1 210 – 280 – 40 0.004 0.006 0.007 0.008 0.010 0.012 0.013 0.014
280 – 340 – 35 0.004 0.005 0.006 0.007 0.009 0.011 0.012 0.013
