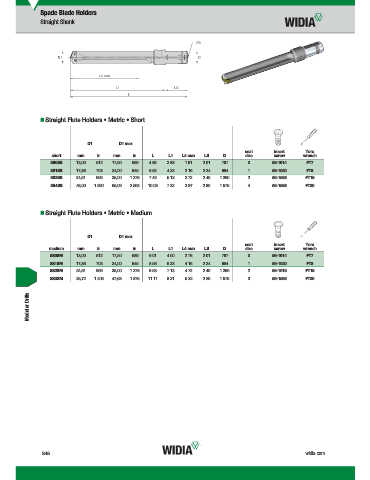

Spade Blade Holders
Straight Shank

„ Straight Flute Holders • Metric • Short

D1 D1 max
seat insert Torx
short mm in mm in L L1 L4 max LS D size screw wrench
8S0SS 13,00 .512 17,50 .689 4.88 2.88 1.91 2.01 .787 0 56-1014 FT7
8S1SS 17,86 .703 24,00 .945 6.53 4.33 2.16 2.24 .984 1 56-1020 FT8
8S2SS 24,61 .969 35,00 1.378 7.49 5.13 2.72 2.40 1.260 2 56-1585 FT15
8S4SS 48,00 1.890 65,09 2.563 10.08 7.32 3.97 2.80 1.575 4 56-1585 FT20

„ Straight Flute Holders • Metric • Medium

D1 D1 max
seat insert Torx
medium mm in mm in L L1 L4 max LS D size screw wrench
8S0SM 13,00 .512 17,50 .689 6.01 4.00 2.76 2.01 .787 0 56-1014 FT7
8S1SM 17,86 .703 24,00 .945 8.58 6.33 4.16 2.24 .984 1 56-1020 FT8
8S2SM 24,61 .969 35,00 1.378 9.53 7.13 4.72 2.40 1.260 2 56-1018 FT15
8S3SM 35,72 1.406 47,63 1.875 11.11 8.31 5.32 2.80 1.575 3 56-1585 FT20
