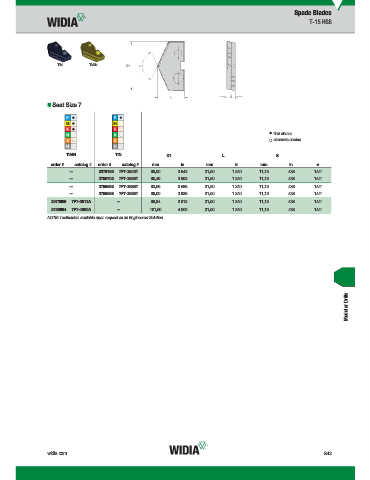

Page 1503 - Master Catalog 2017, Inch
P. 1503
Spade Blades
T-15 HSS
TiN TiAlN
Seat Size 7
first choice
alternate choice
D1 L S
TiAlN TiN D1 L S
TiN
TiAlN
order # catalog # order # catalog # mm in mm in mm in m
— 3279755 7F7-3543T 90,00 3.543 31,50 1.240 11,13 .438 144°
— 2759703 7F7-3563T 90,49 3.563 31,50 1.240 11,13 .438 144°
— 2759698 7F7-3688T 93,66 3.688 31,50 1.240 11,13 .438 144°
— 2759688 7F7-3938T 96,00 3.938 31,50 1.240 11,13 .438 144°
2972689 7F7-3813A — 96,84 3.813 31,50 1.240 11,13 .438 144°
2759684 7F7-4000A — 101,60 4.000 31,50 1.240 11,13 .438 144°
NOTE: Toolholders available upon request as an Engineered Solution.
Modular Drills
widia.com S43
