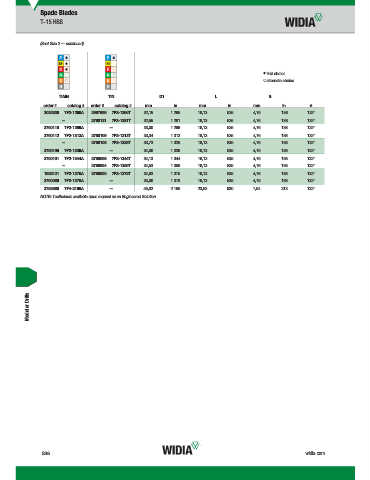

Page 1498 - Master Catalog 2017, Inch

Spade Blades
T-15 HSS

(Seat Size 2 — continued)

first choice
alternate choice
D1 L S
TiAlN
TiAlN TiN D1 L S
TiN
order # catalog # order # catalog # mm in mm in mm in m
3032539 7F2-1266A 2967699 7F2-1266T 32,15 1.266 16,13 .635 4,76 .188 132°
— 2760121 7F2-1281T 32,55 1.281 16,13 .635 4,76 .188 132°
2760118 7F2-1299A — 33,00 1.299 16,13 .635 4,76 .188 132°
2760112 7F2-1313A 2760109 7F2-1313T 33,34 1.313 16,13 .635 4,76 .188 132°
— 2760106 7F2-1328T 33,73 1.328 16,13 .635 4,76 .188 132°
2760105 7F2-1339A — 34,00 1.339 16,13 .635 4,76 .188 132°
2760101 7F2-1344A 2760098 7F2-1344T 34,13 1.344 16,13 .635 4,76 .188 132°
— 2760094 7F2-1359T 34,53 1.359 16,13 .635 4,76 .188 132°
1926121 7F2-1375A 2760090 7F2-1375T 34,93 1.375 16,13 .635 4,76 .188 132°
2760089 7F2-1378A — 35,00 1.378 16,13 .635 4,76 .188 132°
2759880 7F4-2166A — 55,02 2.166 23,62 .930 7,94 .313 132°
NOTE: Toolholders available upon request as an Engineered Solution.
