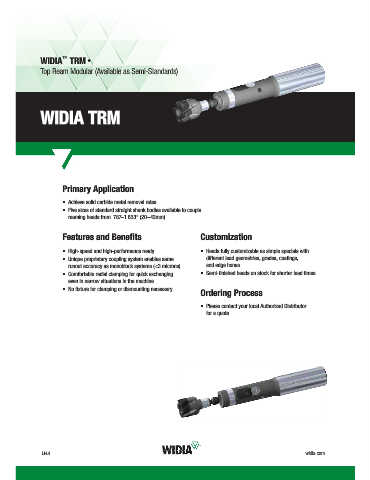

Page 1622 - Master Catalog 2017, Inch

™
WIDIA TRM •
Top Ream Modular (Available as Semi-Standards)

WIDIA TRM

Primary Application

• Achieve solid carbide metal removal rates.

• Five sizes of standard straight shank bodies available to couple
reaming heads from .787–1.653" (20–42mm).

Features and Benefi ts Customization

• High-speed and high-performance ready. • Heads fully customizable as simple specials with

• Unique proprietary coupling system enables same different lead geometries, grades, coatings,
runout accuracy as monoblock systems (<3 microns). and edge hones.

• Comfortable radial clamping for quick exchanging • Semi-fi nished heads on stock for shorter lead times.
even in narrow situations in the machine.

• No fi xture for clamping or dismounting necessary.
Ordering Process
• Please contact your local Authorized Distributor

for a quote.

U44 widia.com
