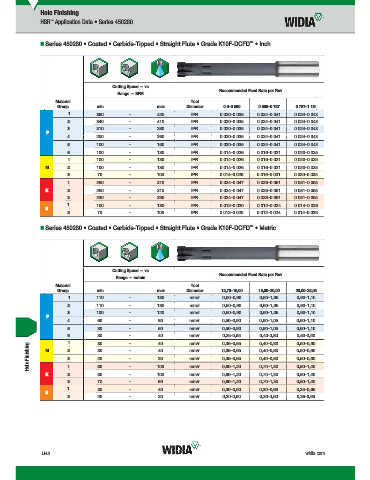

Hole Finishing
HSR Application Data • Series 450280
™

™
„ Series 450280 • Coated • Carbide-Tipped • Straight Flute • Grade K10F-DCFD • Inch

Cutting Speed — vc
Recommended Feed Rate per Rev
Range — SFM
Material Tool
Group min max Diameter 0.5–0.590 0.590–0.787 0.787–1.181
1 360 – 420 IPR 0.020–0.035 0.024–0.041 0.024–0.043
2 340 – 410 IPR 0.020–0.035 0.024–0.041 0.024–0.043
3 310 – 380 IPR 0.020–0.035 0.024–0.041 0.024–0.043
P
4 200 – 260 IPR 0.020–0.035 0.024–0.041 0.024–0.043
5 100 – 160 IPR 0.020–0.035 0.024–0.041 0.024–0.043
6 100 – 130 IPR 0.014–0.026 0.016–0.031 0.020–0.035
1 100 – 130 IPR 0.014–0.026 0.016–0.031 0.020–0.035
M 2 100 – 130 IPR 0.014–0.026 0.016–0.031 0.020–0.035
3 70 – 100 IPR 0.014–0.026 0.016–0.031 0.020–0.035
1 250 – 310 IPR 0.024–0.047 0.028–0.051 0.031–0.055
K 2 250 – 310 IPR 0.024–0.047 0.028–0.051 0.031–0.055
3 230 – 290 IPR 0.024–0.047 0.028–0.051 0.031–0.055
1 100 – 130 IPR 0.012–0.020 0.012–0.024 0.014–0.026
S
2 70 – 100 IPR 0.012–0.020 0.012–0.024 0.014–0.026

™
„ Series 450280 • Coated • Carbide-Tipped • Straight Flute • Grade K10F-DCFD • Metric

Cutting Speed — vc
Recommended Feed Rate per Rev
Range — m/min
Material Tool
Group min max Diameter 12,70–15,00 15,00–20,00 20,00–32,00
1 110 – 130 mm/r 0,50–0,90 0,60–1,05 0,60–1,10
2 110 – 130 mm/r 0,50–0,90 0,60–1,05 0,60–1,10
3 100 – 120 mm/r 0,50–0,90 0,60–1,05 0,60–1,10
P
4 60 – 80 mm/r 0,50–0,90 0,60–1,05 0,60–1,10
5 30 – 50 mm/r 0,50–0,90 0,60–1,05 0,60–1,10
6 1 30 – – 40 mm/r 0,35-0,65 0,40-0,80 0,50–0,90
0,50-0,90
0,35–0,65
0,40–0,80
40
mm/r
30
Hole Finishing M 2 3 30 – – 40 mm/r 0,35–0,65 0,40–0,80 0,50–0,90
mm/r
0,50–0,90
30
0,40–0,80
0,35–0,65
20
0,80–1,40
mm/r
0,70–1,30
0,60–1,20
K 1 2 80 – – 100 mm/r 0,60–1,20 0,70–1,30 0,80–1,40
80
100
3 70 – 90 mm/r 0,60–1,20 0,70–1,30 0,80–1,40
1 30 – 40 mm/r 0,30–0,50 0,30–0,60 0,35–0,65
S
2 20 – 30 mm/r 0,30-0,50 0,30-0,60 0,35-0,65
