Hole Finishing

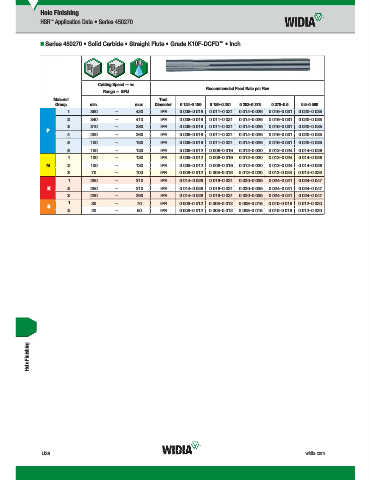

HSR Application Data • Series 450270
™

™
„ Series 450270 • Solid Carbide • Straight Flute • Grade K10F-DCFD • Inch

Cutting Speed — vc
Recommended Feed Rate per Rev
Range — SFM
Material Tool
Group min max Diameter 0.124–0.189 0.189–0.281 0.282–0.378 0.378–0.5 0.5–0.590
1 360 – 420 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
2 340 – 410 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
3 310 – 380 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
P
4 200 – 260 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
5 100 – 160 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
6 100 – 130 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
1 100 – 130 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
M 2 100 – 130 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
3 70 – 100 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
1 250 – 310 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
K 2 250 – 310 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
3 230 – 290 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
1 30 – 70 IPR 0.006–0.012 0.008–0.012 0.008–0.016 0.010–0.018 0.012–0.020
S
2 20 – 50 IPR 0.006–0.012 0.008–0.012 0.008–0.016 0.010–0.018 0.012–0.020

Hole Finishing

U38 widia.com
