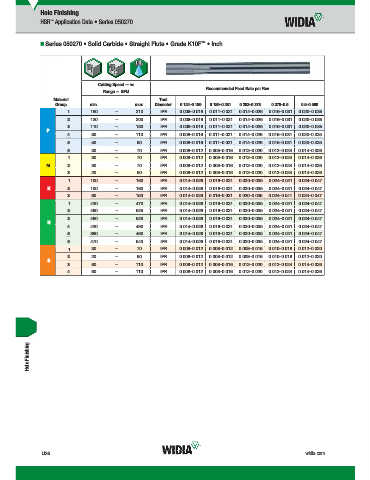

Page 1614 - Master Catalog 2017, Inch

Hole Finishing
HSR Application Data • Series 050270
™

™
„ Series 050270 • Solid Carbide • Straight Flute • Grade K10F • Inch

Cutting Speed — vc
Recommended Feed Rate per Rev
Range — SFM
Material Tool
Group min max Diameter 0.124–0.189 0.189–0.281 0.282–0.378 0.378–0.5 0.5–0.590
1 150 – 210 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
2 130 – 200 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
3 110 – 180 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
P
4 80 – 110 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
5 50 – 80 IPR 0.008–0.016 0.011–0.021 0.014–0.026 0.016–0.031 0.020–0.035
6 30 – 70 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
1 30 – 70 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
M 2 30 – 70 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
3 20 – 50 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
1 100 – 160 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
K 2 100 – 160 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
3 80 – 150 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
1 420 – 470 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
2 460 – 520 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
3 460 – 520 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
N
4 420 – 490 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
5 390 – 460 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
6 470 – 540 IPR 0.014–0.026 0.016–0.031 0.020–0.035 0.024–0.041 0.024–0.047
1 30 – 70 IPR 0.006–0.012 0.008–0.012 0.008–0.016 0.010–0.018 0.012–0.020
2 20 – 50 IPR 0.006–0.012 0.008–0.012 0.008–0.016 0.010–0.018 0.012–0.020
S
3 80 – 110 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026
4 80 – 110 IPR 0.008–0.012 0.008–0.016 0.012–0.020 0.012–0.024 0.014–0.026

Hole Finishing

U36 widia.com
