Hole Finishing

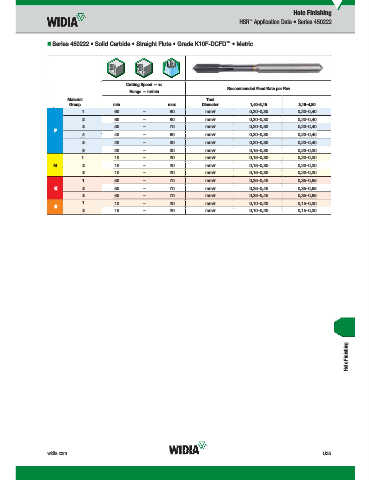

HSR Application Data • Series 450222
™

™
„ Series 450222 • Solid Carbide • Straight Flute • Grade K10F-DCFD • Metric

Cutting Speed — vc
Recommended Feed Rate per Rev
Range — m/min
Material Tool
Group min max Diameter 1,40–3,15 3,16–4,80
1 60 – 80 mm/r 0,20–0,30 0,20–0,40
2 60 – 80 mm/r 0,20–0,30 0,20–0,40
3 50 – 70 mm/r 0,20–0,30 0,20–0,40
P
4 40 – 60 mm/r 0,20–0,30 0,20–0,40
5 20 – 30 mm/r 0,20–0,30 0,20–0,40
6 20 – 30 mm/r 0,15–0,30 0,20–0,30
1 10 – 20 mm/r 0,15–0,30 0,20–0,30
M 2 10 – 20 mm/r 0,15–0,30 0,20–0,30
3 10 – 20 mm/r 0,15–0,30 0,20–0,30
1 50 – 70 mm/r 0,25–0,45 0,35–0,65
K 2 50 – 70 mm/r 0,25–0,45 0,35–0,65
3 50 – 70 mm/r 0,25–0,45 0,35–0,65
1 10 – 20 mm/r 0,10–0,20 0,15–0,30
S
2 10 – 20 mm/r 0,10–0,20 0,15–0,30

Hole Finishing

widia.com U35
