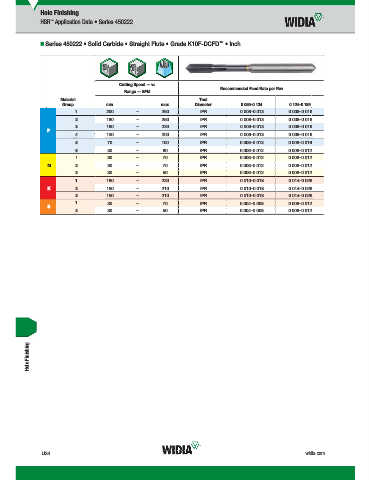

Page 1612 - Master Catalog 2017, Inch

Hole Finishing
HSR Application Data • Series 450222
™

™
„ Series 450222 • Solid Carbide • Straight Flute • Grade K10F-DCFD • Inch

Cutting Speed — vc
Recommended Feed Rate per Rev
Range — SFM
Material Tool
Group min max Diameter 0.055–0.124 0.124–0.189
1 200 – 260 IPR 0.008–0.013 0.008–0.016
2 180 – 250 IPR 0.008–0.013 0.008–0.016
3 160 – 230 IPR 0.008–0.013 0.008–0.016
P
4 130 – 200 IPR 0.008–0.013 0.008–0.016
5 70 – 100 IPR 0.008–0.013 0.008–0.016
6 50 – 80 IPR 0.006–0.012 0.008–0.012
1 30 – 70 IPR 0.006–0.012 0.008–0.012
M 2 30 – 70 IPR 0.006–0.012 0.008–0.012
3 30 – 50 IPR 0.006–0.012 0.008–0.012
1 160 – 230 IPR 0.010–0.018 0.014–0.026
K 2 150 – 210 IPR 0.010–0.018 0.014–0.026
3 150 – 210 IPR 0.010–0.018 0.014–0.026
1 30 – 70 IPR 0.004–0.008 0.006–0.012
S
2 30 – 50 IPR 0.004–0.008 0.006–0.012
