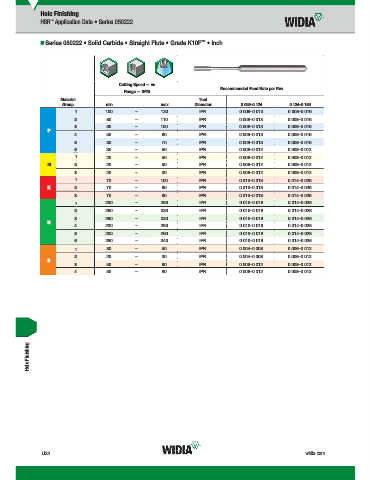

Page 1610 - Master Catalog 2017, Inch

Hole Finishing
HSR Application Data • Series 050222
™

„ Series 050222 • Solid Carbide • Straight Flute • Grade K10F • Inch
™

Cutting Speed — vc
Recommended Feed Rate per Rev
Range — SFM
Material Tool
Group min max Diameter 0.055–0.124 0.124–0.189
1 100 – 130 IPR 0.008–0.013 0.008–0.016
2 80 – 110 IPR 0.008–0.013 0.008–0.016
3 80 – 100 IPR 0.008–0.013 0.008–0.016
P
4 50 – 80 IPR 0.008–0.013 0.008–0.016
5 30 – 70 IPR 0.008–0.013 0.008–0.016
6 30 – 50 IPR 0.006–0.012 0.008–0.012
1 20 – 50 IPR 0.006–0.012 0.008–0.012
M 2 20 – 50 IPR 0.006–0.012 0.008–0.012
3 20 – 30 IPR 0.006–0.012 0.008–0.012
1 70 – 100 IPR 0.010–0.018 0.014–0.026
K 2 70 – 80 IPR 0.010–0.018 0.014–0.026
3 70 – 80 IPR 0.010–0.018 0.014–0.026
1 230 – 290 IPR 0.010–0.018 0.014–0.026
2 260 – 330 IPR 0.010–0.018 0.014–0.026
3 260 – 330 IPR 0.010–0.018 0.014–0.026
N
4 230 – 290 IPR 0.010–0.018 0.014–0.026
5 200 – 260 IPR 0.010–0.018 0.014–0.026
6 280 – 340 IPR 0.010–0.018 0.014–0.026
1 30 – 50 IPR 0.004–0.008 0.006–0.012
2 20 – 30 IPR 0.004–0.008 0.006–0.012
S
3 50 – 80 IPR 0.006–0.012 0.008–0.012
4 50 – 80 IPR 0.006–0.012 0.008–0.012

Hole Finishing
