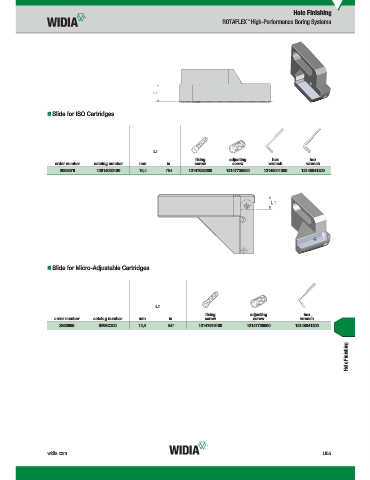

Page 1633 - Master Catalog 2017, Inch
P. 1633
Hole Finishing
ROTAFLEX High-Performance Boring Systems
™
Slide for ISO Cartridges
L1
fixing adjusting hex hex
order number catalog number mm in screw screw wrench wrench
2005576 12614020100 19,4 .764 12147625200 12147739800 12148041300 12148041200
Slide for Micro-Adjustable Cartridges
L1
fixing adjusting hex
order number catalog number mm in screw screw wrench
3860905 SMAC200 13,9 .547 12147519100 12147739800 12148041200
Hole Finishing
widia.com U55
